Health and cost

Grades#

Every table starts at 100 points and loses points for each problem the scan finds. The grade is the letter for the final score. The home chart counts tables per grade. It is not a size-weighted median. UI words map to letters: A Excellent, B Good, C Fair, D Poor, F Critical.

Grade	Score
A	90 or more
B	75 to 89
C	60 to 74
D	40 to 59
F	Below 40

The home screen rolls those grades up across the lake, so you can see at a glance how many tables need work and how much storage maintenance could give back. It shows whether the count of D and F tables moved since yesterday, which D and F tables people query most, and which tables Cryo moved up a grade in the last 24 hours. A table only counts as fixed once a scan after its maintenance job shows the better grade. The quickstart shows that screen after the first scan of the seeded lake.

Deductions#

There are two deduction sizes and no others: a warning costs 8 points and a critical finding costs 20. Two warnings and one critical is 100 − 8 − 8 − 20 = 64, grade C. The seeded demo run is the same lake, not a production fleet.

Worked example: how a table reaches 64.
Step	Points	Running score
Start		100
Small-file fragmentation (warning)	−8	92
Manifest files bloat (warning)	−8	84
Position delete file buildup (critical)	−20	64
Final score and grade		C 64

On the Tables page, every row carries its grade, its score change over 7 days and the evidence behind it: small files out of total files, size and reads. The Health triage view lists grade D and F tables first.

Tables page. Last nightly run partial. Triage cards: 1 failed last run, 2 queued or running, 2 skipped with work, 2 health dropped, 1 scan issue. A Sankey shows 14 active tables, 13 scanned, 7 needing work and 4 selected, of which 2 succeeded, 1 failed and 1 is in progress. Below, the table list sorted by small files: analytics.events at grade F, score 28, down 14 in 7 days, last run failed, 87% of 48.2K files small. — The Tables page. A grade is never shown without the counts that produced it, and every row says what maintenance last did.

Open a table to see its score and how it got there. This one scores 28: it has lost 72 points to two critical findings and four warnings.

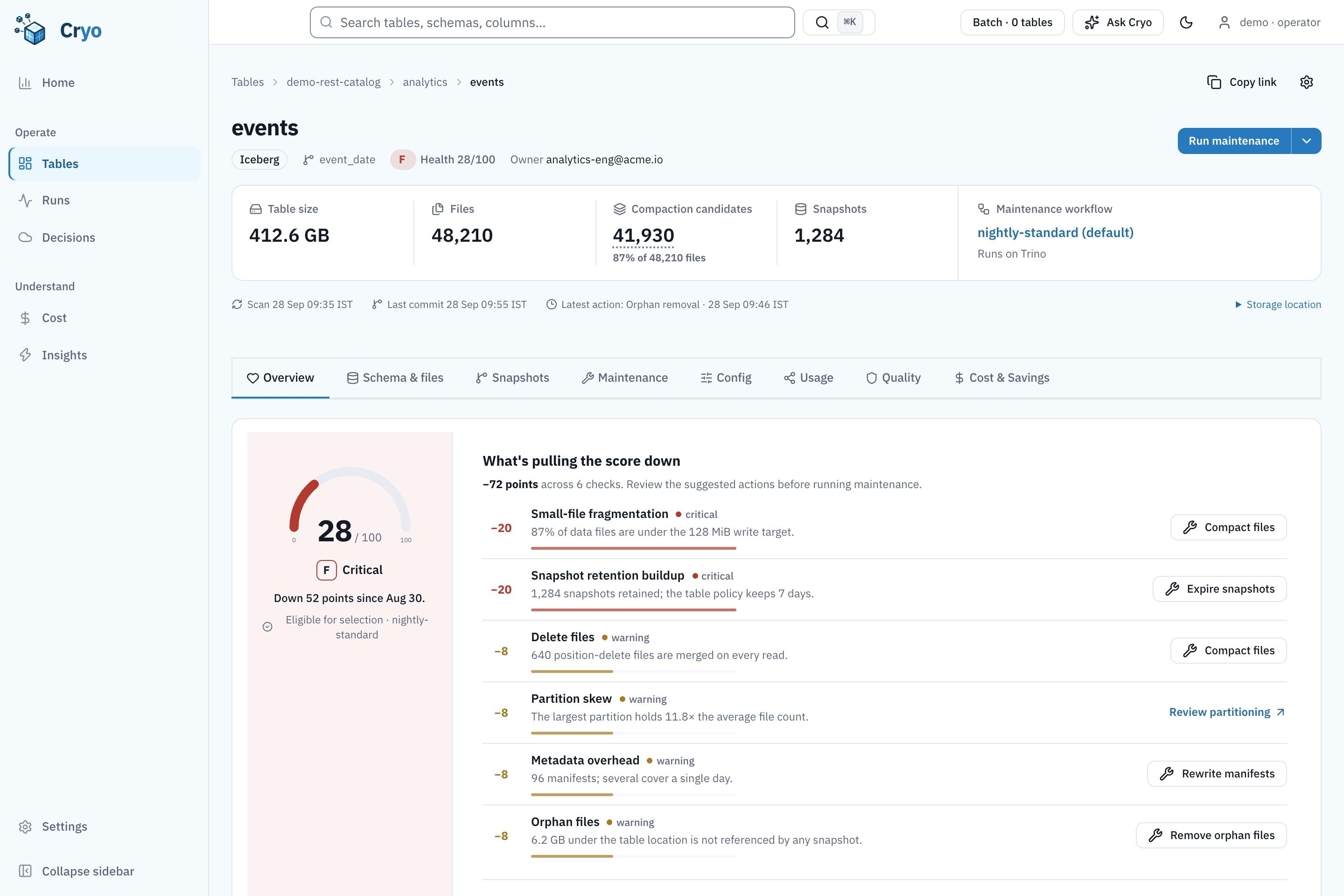

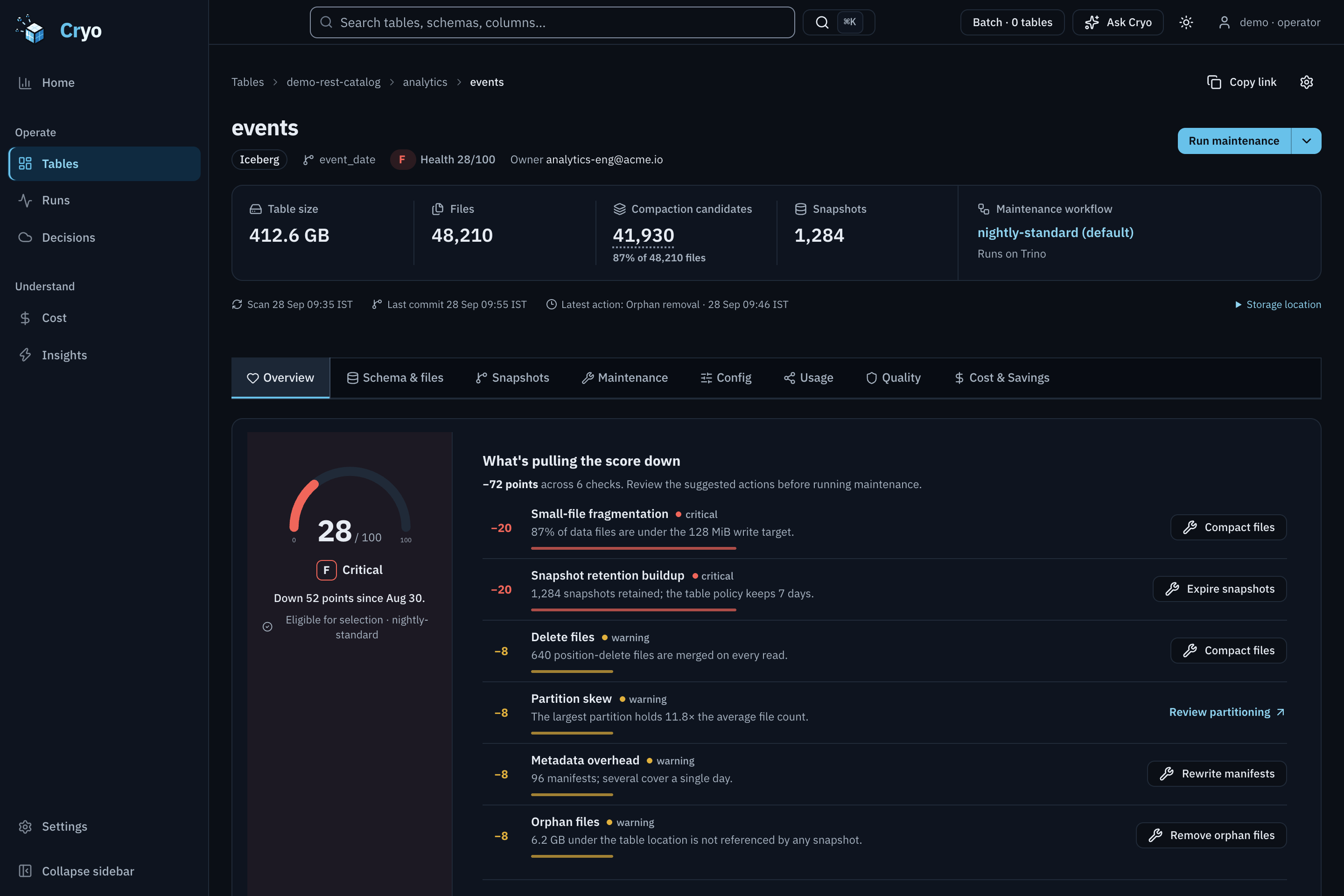

Table detail for analytics.events: 412.6 GB, 48,210 files, 41,930 compaction candidates, 1,284 snapshots, health score 28 of 100, grade F, Critical. — A grade F table. The score gauge, the compaction candidates and the snapshot count all come from the last scan.

Projection: from scan to stored cost#

The cost estimator turns the scanner's stored statistics into a projected byte count for each operation and stores it. Nothing is read from object storage to produce it. Orphan-file precision is an opt-in scanner tier. Without it, the number is flagged as last-known.

Figure 1Cost is estimated from scan stats, without reading object storage

Object storage is not an input to the projection.

Write or execute

Text description

Step 1: Scanner to Cost estimator (stats)
Step 2: Cost estimator to Stored projection (store)
Object storage is not read by Cost estimator

What each operation projects#

Operation	Projected effect
`expire_snapshots`	Bytes referenced only by snapshots the retention policy would drop, and only when no surviving snapshot still references the file.
`remove_orphan_files`	Bytes present in storage but referenced by no snapshot. Precise only on the scanner's opt-in listing tier.
`optimize`	Delete-file bytes merged away. Data bytes are rewritten, so the storage change shows up in the later expiry projection.
`optimize_manifests`	Manifest and metadata bytes reclaimed by consolidation. Small in volume, large in plan-time latency.

Where to go next#

MaintenanceThe fixed operation order. It does not clear every cause of a low grade, including format upgrades, streaming velocity, property settings, and partition skew.How Cryo fitsWhy the scan path never touches a data file.ArchitectureWhere the scanner and cost estimator sit in the running system.ReferenceHow Cryo's health grading compares with adjacent tools.
