Table detail

Open any row on the Tables page to get here. Every screenshot below is the same table from the seeded demo lake, analytics.events: 412.6 GB in 48,210 files, 41,930 of them small, scoring 28 (grade F). Use it to learn where each answer lives before you need it on a real table.

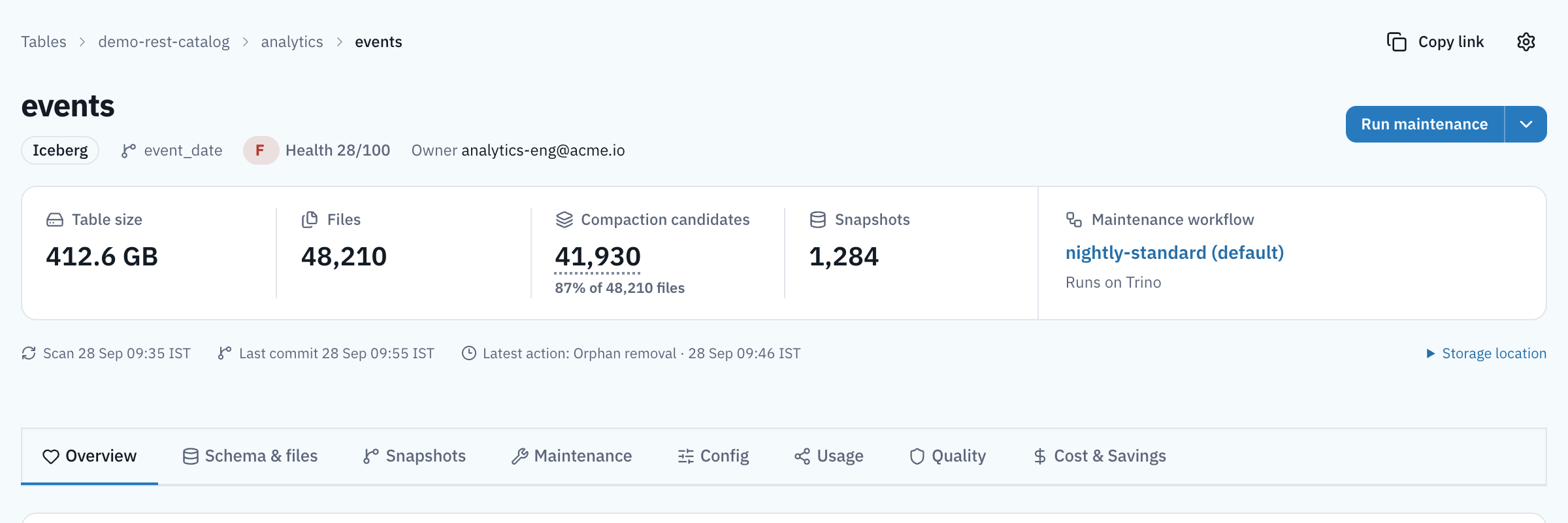

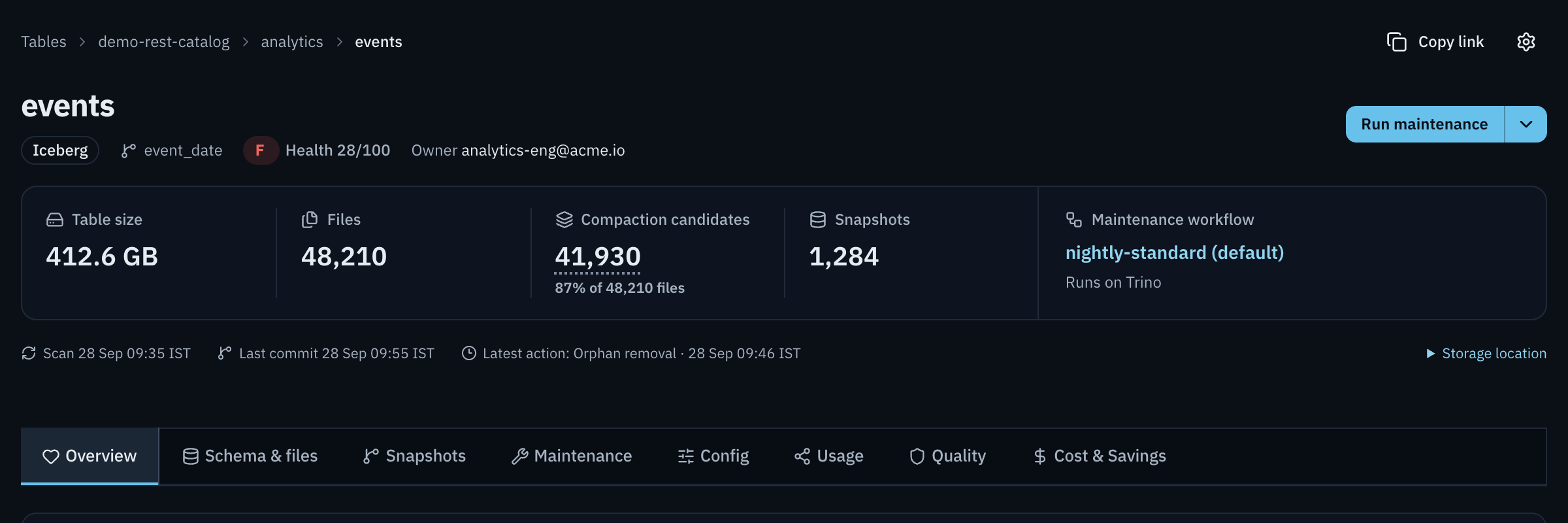

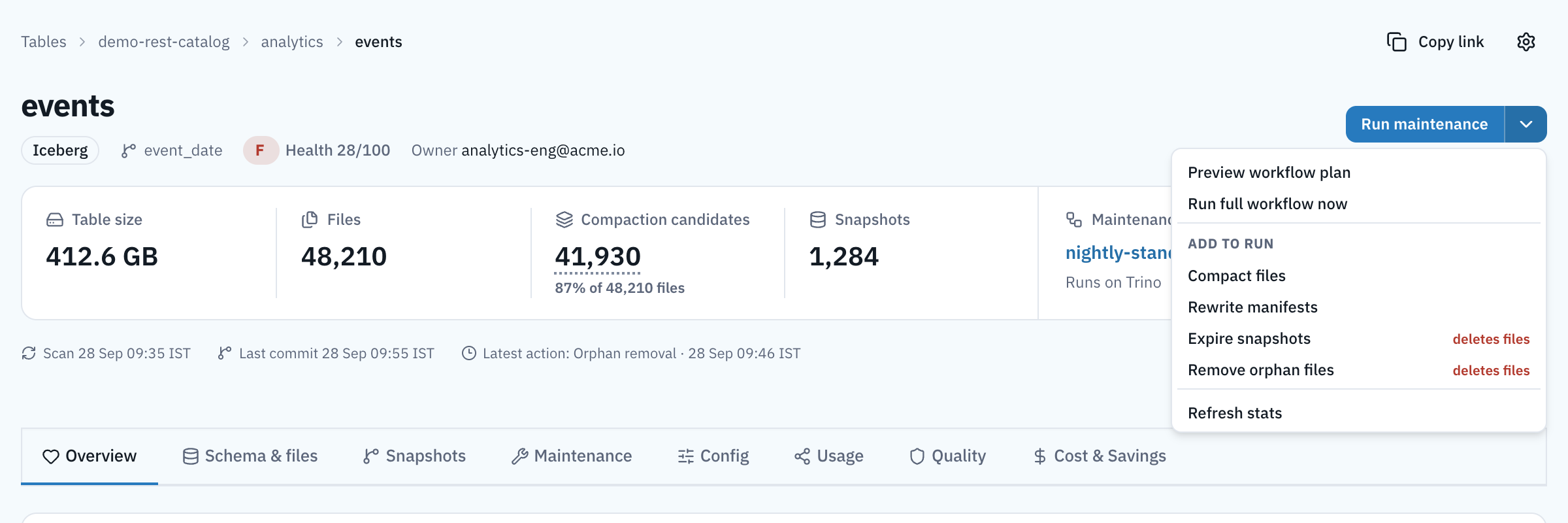

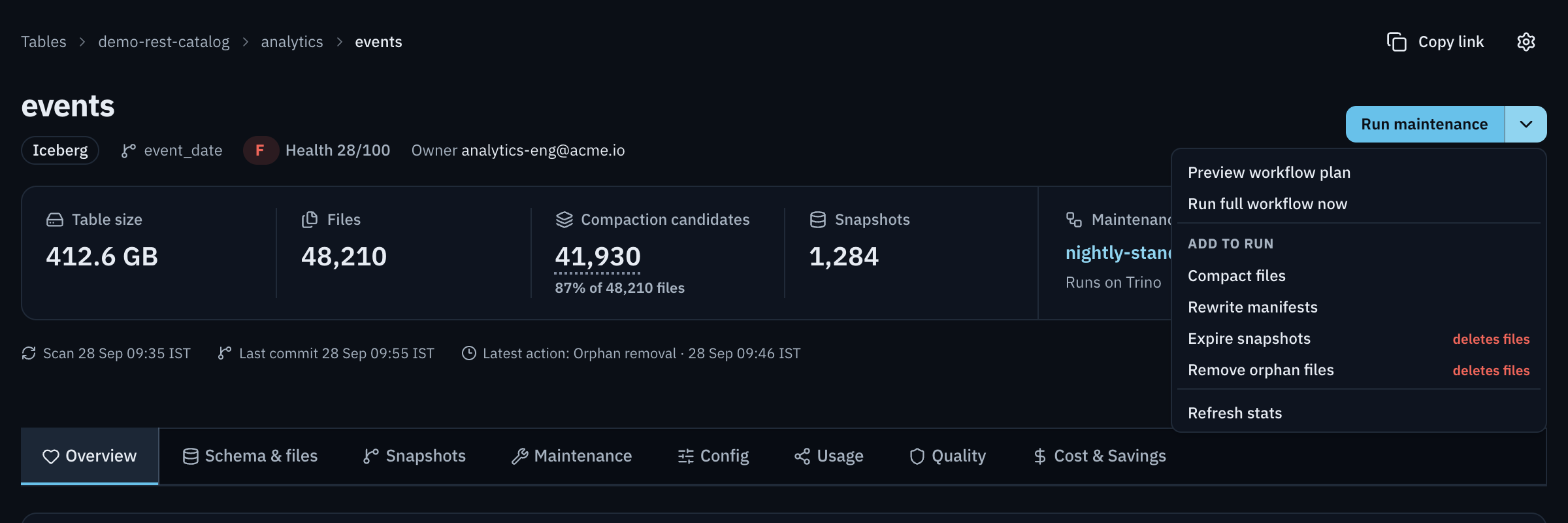

The header#

The header stays in place across all eight tabs. It answers three questions without a click: what this table is, how healthy it is, and what Cryo will do to it next.

cryo.local/tables/analytics.events

Demo data

The eight tabs#

Each tab owns one question. The address bar carries the open tab as ?tab=, so a link to ?tab=snapshots opens that tab directly. On narrow screens the tab bar becomes a Table section dropdown.

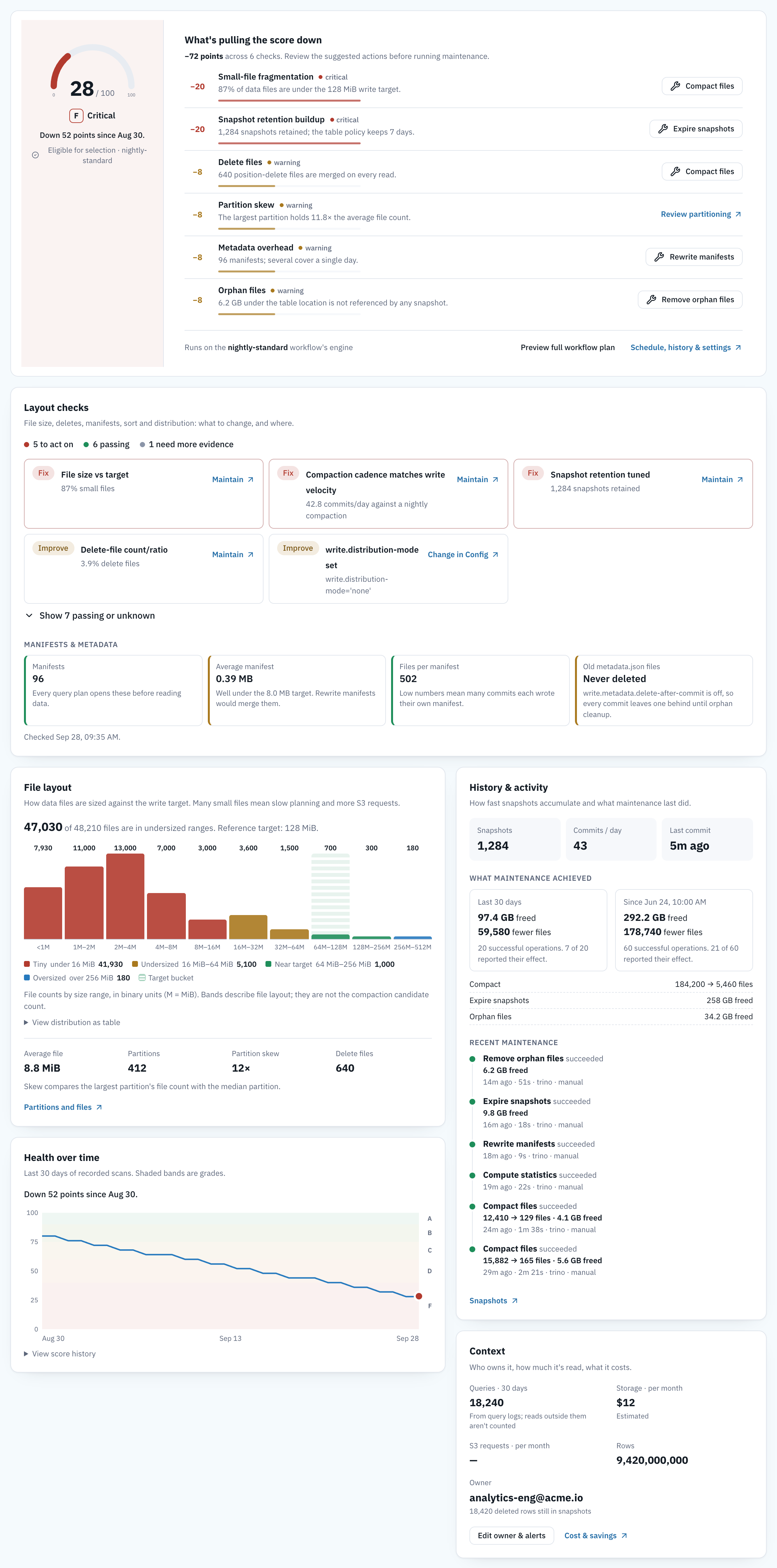

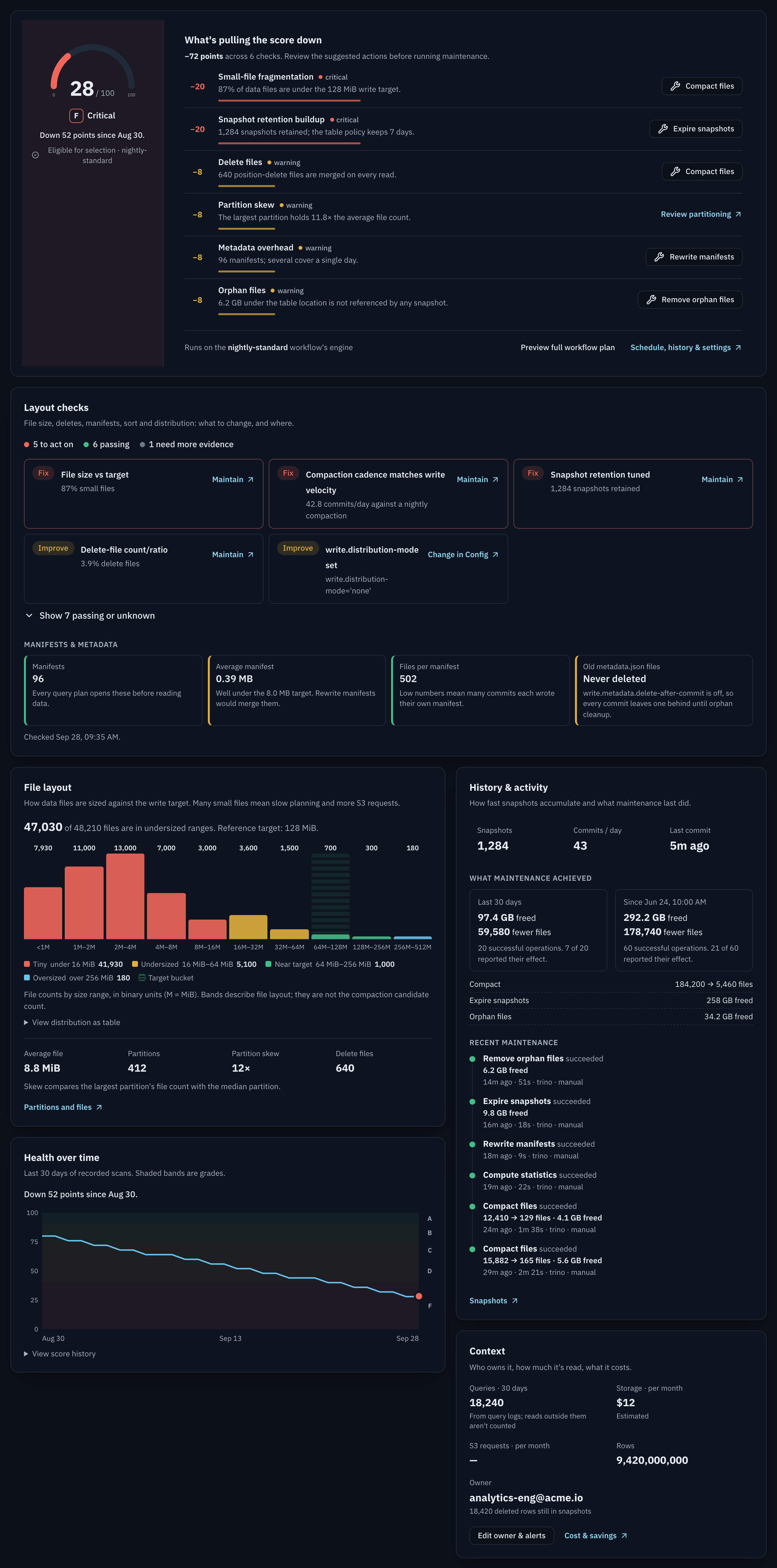

Overview#

The default tab. It leads with the score and the deductions behind it, then the evidence those deductions came from.

cryo.local/tables/analytics.events?tab=overview

Demo data

Score#

The gauge shows the score, its grade and the change over the recorded history, plus whether the table is eligible for nightly selection. What's pulling the score down lists each deduction, critical first, with the reason in plain words and the operation that addresses it. A critical finding costs 20 points and a warning 8, as Health and cost explains. Preview full workflow plan opens the plan, and Schedule, history & settings jumps to the Maintenance tab.

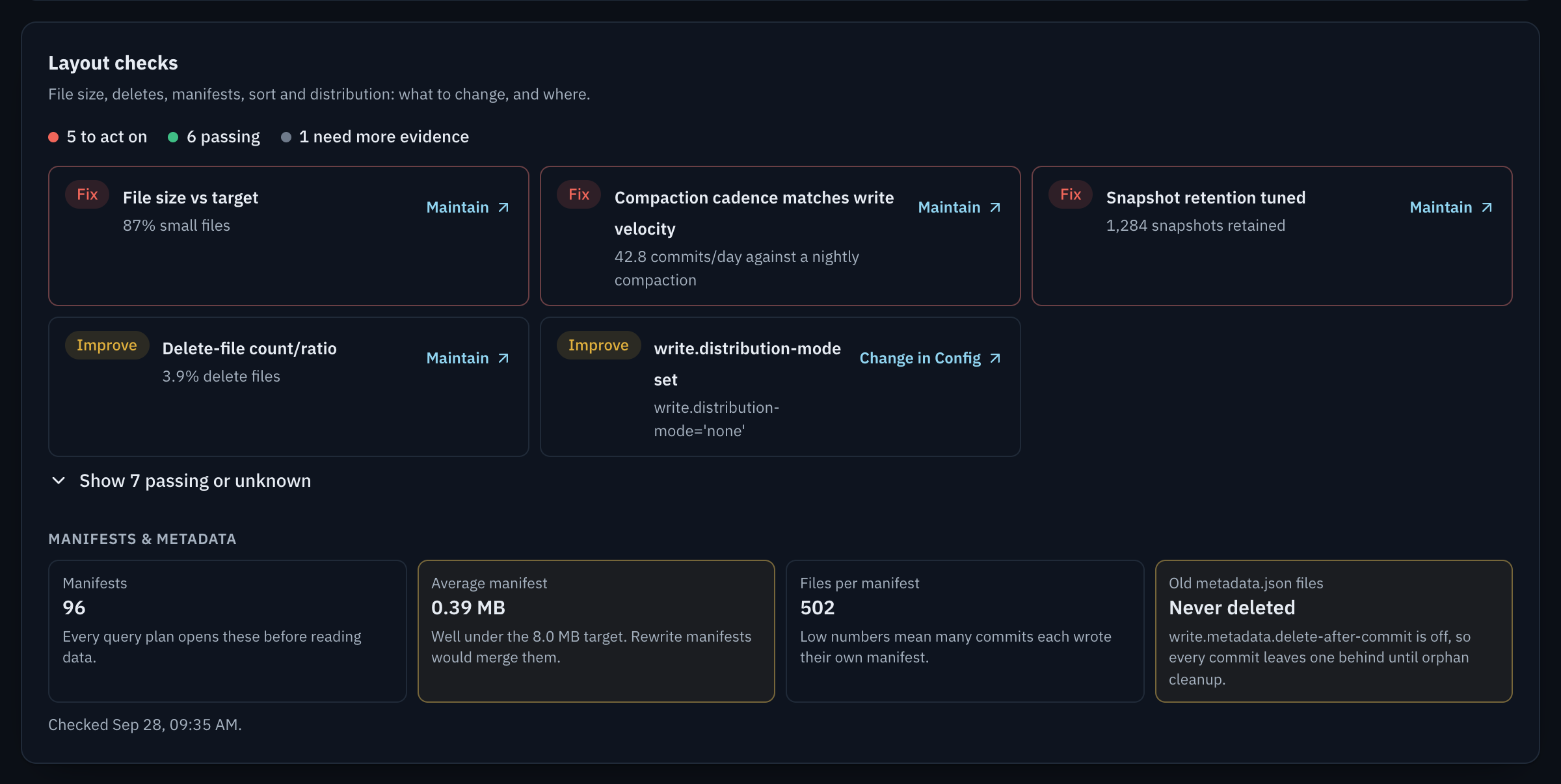

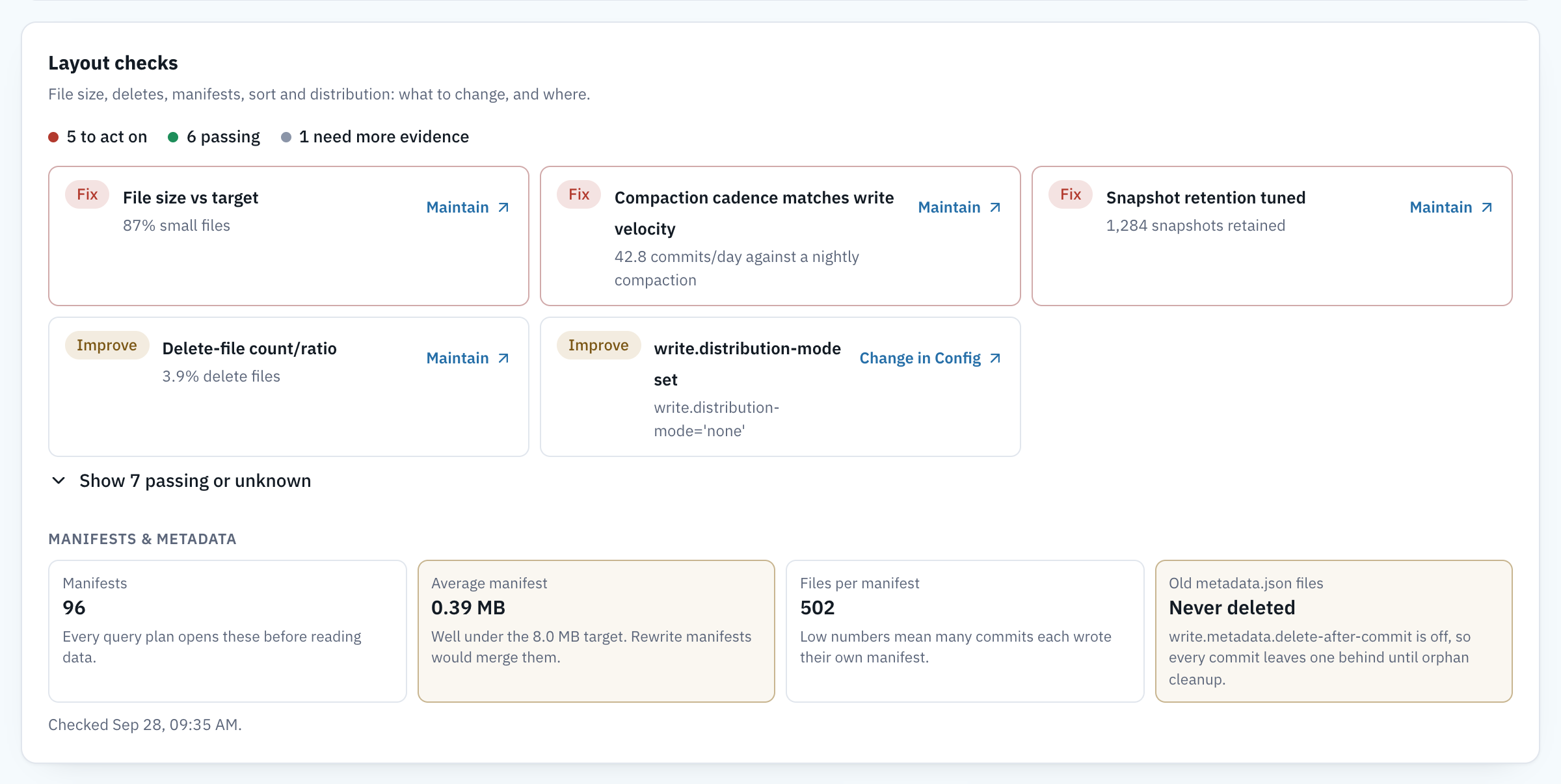

Layout checks#

Twelve weighted checks of how well the table is set up for its engine, storage and workload: file size against the target, delete-file ratio, whether the partition scheme matches query predicates, whether compaction keeps up with write velocity, sort order, distribution mode, manifests, statistics, retention, orphan cleanup, schema width and storage class. Only the checks to act on are shown as cards, marked Fix or Improve, each with a link to where you change it: a setting on Config, an operation on Maintenance, or archiving on Cost & Savings. Passing and unknown checks are collapsed underneath.

Under the checks, Manifests & metadata shows the manifest count, the average manifest size against Iceberg's 8 MiB target, files per manifest, and whether old metadata.json files get deleted after each commit. With write.metadata.delete-after-commit.enabled off, which is Iceberg's default, every commit leaves one behind until orphan cleanup. Manifests the scan couldn't read are counted here too.

cryo.local/tables/analytics.events?tab=overview

Demo data

File layout#

A histogram of data files by size, in binary units, against the table's write target. Bars are coloured by band: tiny (up to an eighth of the target), undersized, near target, and oversized (twice the target or more). The headline counts files in undersized ranges. Below it are the average file size, partition count, partition skew and delete files, with Partitions and files linking to the next tab.

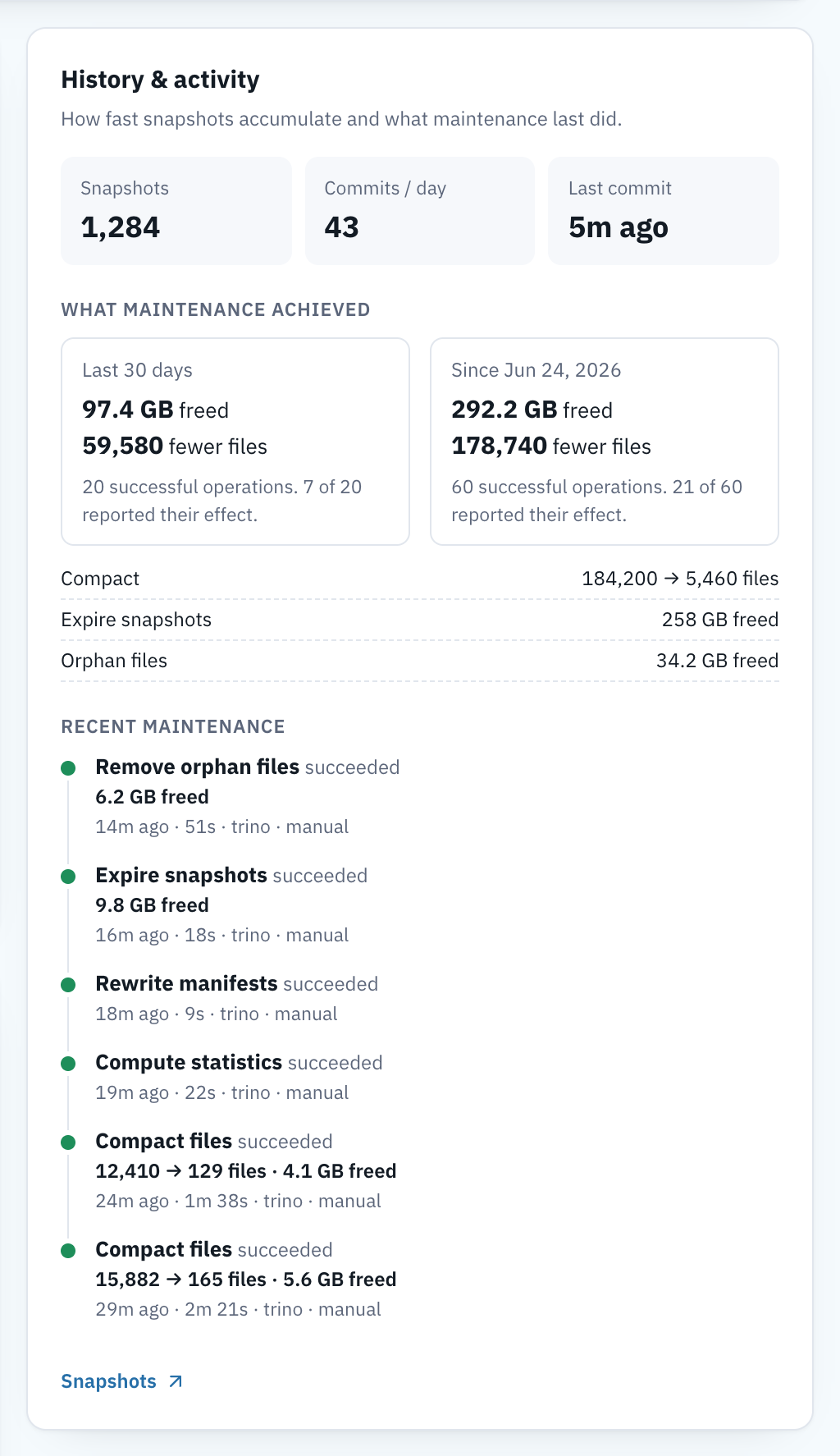

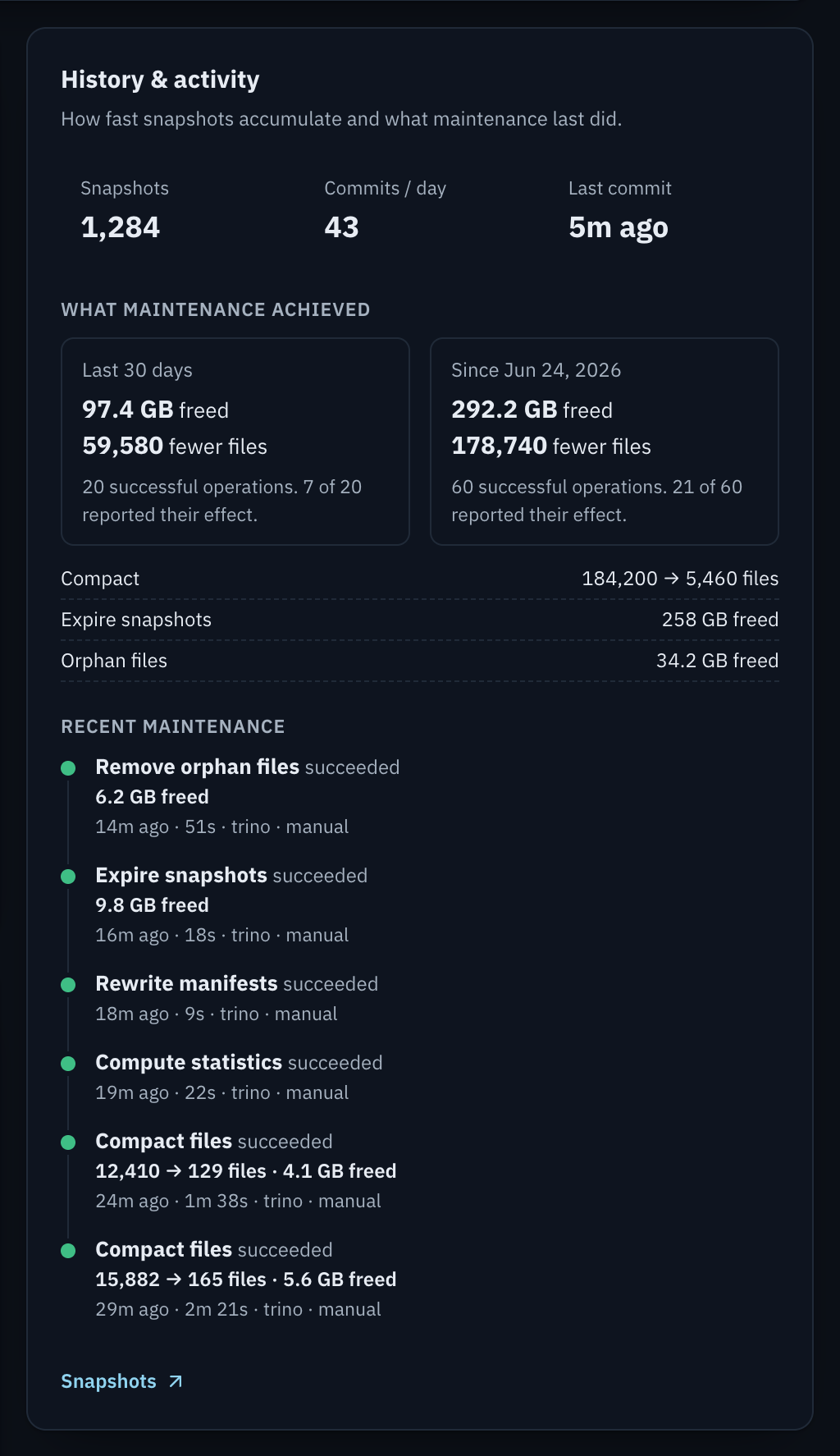

History & activity#

Snapshot count, commits per day and the last commit. What maintenance achieved totals what successful operations reported, for the last 30 days and since the first one: storage freed and files removed by compaction, then a line per operation. Only numbers the engine reported count. An operation that didn't say what it freed is counted as unmeasured, not as zero, so the card says how many of them reported. Then Recent maintenance: each audited action with its result, bytes freed or files before and after, duration, engine and trigger.

cryo.local/tables/analytics.events?tab=overview

Demo data

Health over time#

The score across the last 30 days of recorded scans, drawn over shaded grade bands. View score history opens the same points as a table.

Context#

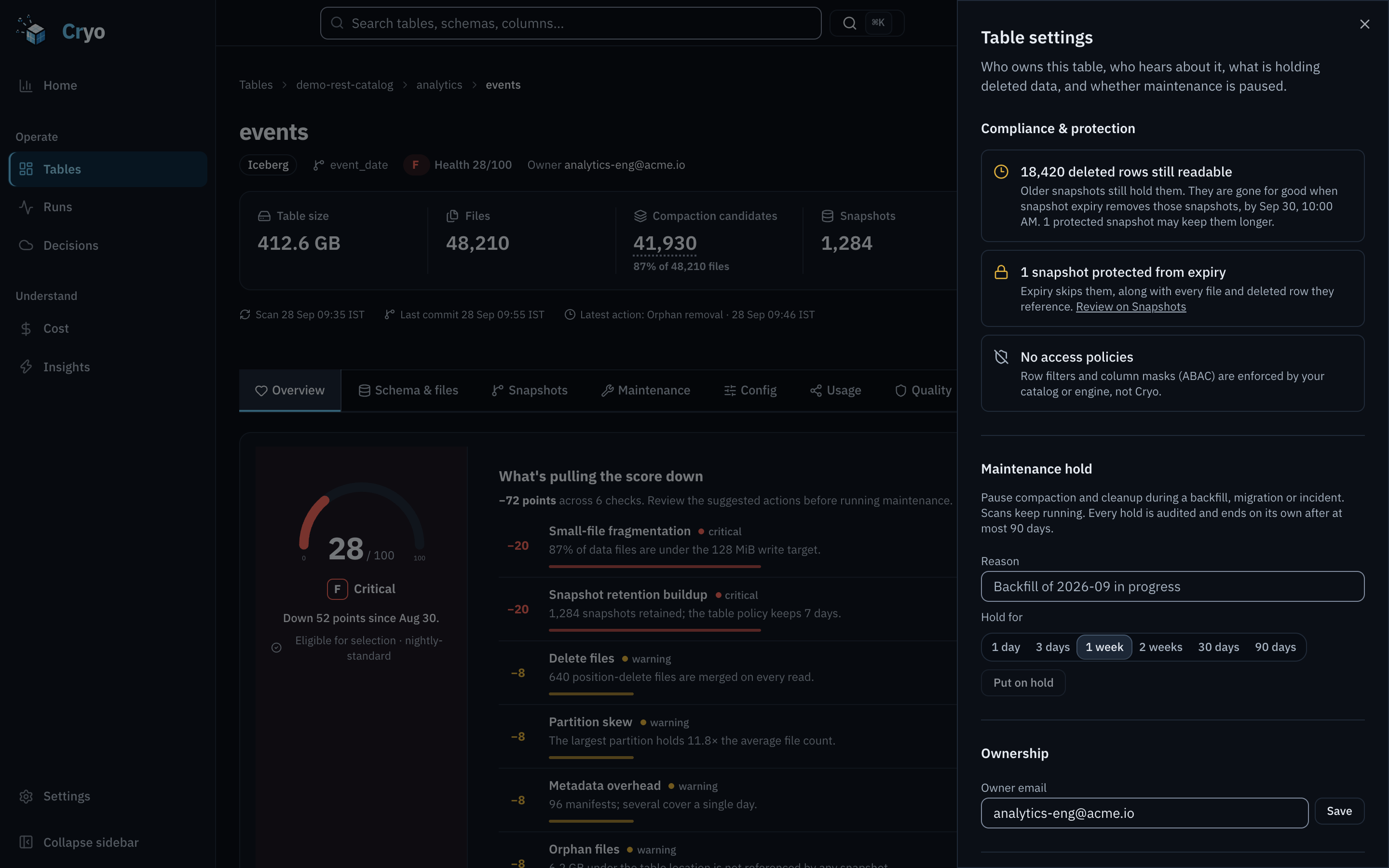

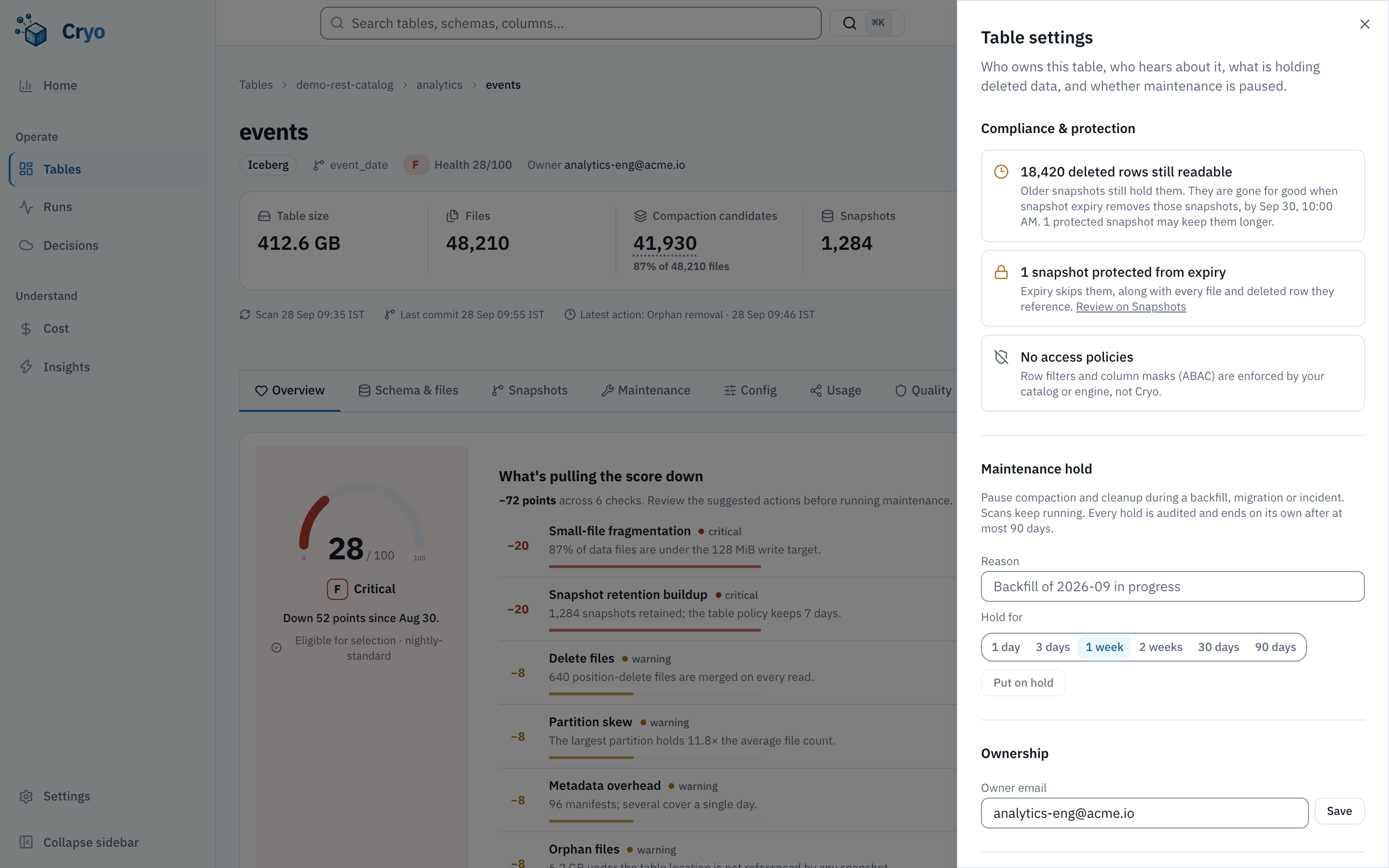

Queries in the last 30 days, estimated storage per month, S3 requests, rows and the owner. Edit owner & alerts opens table settings. Triggered maintenance signals, such as a high small-file ratio, appear at the bottom with a link to review them.

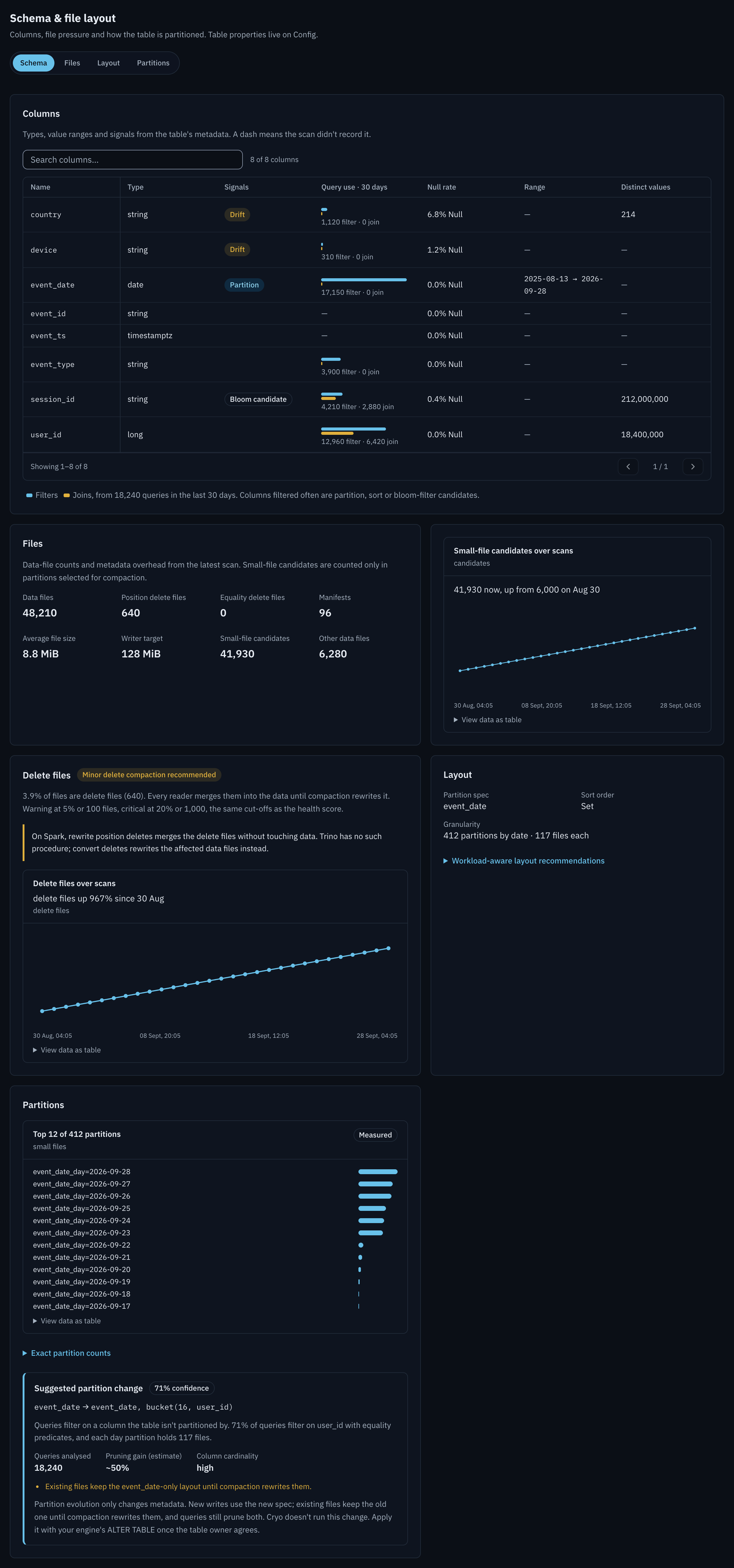

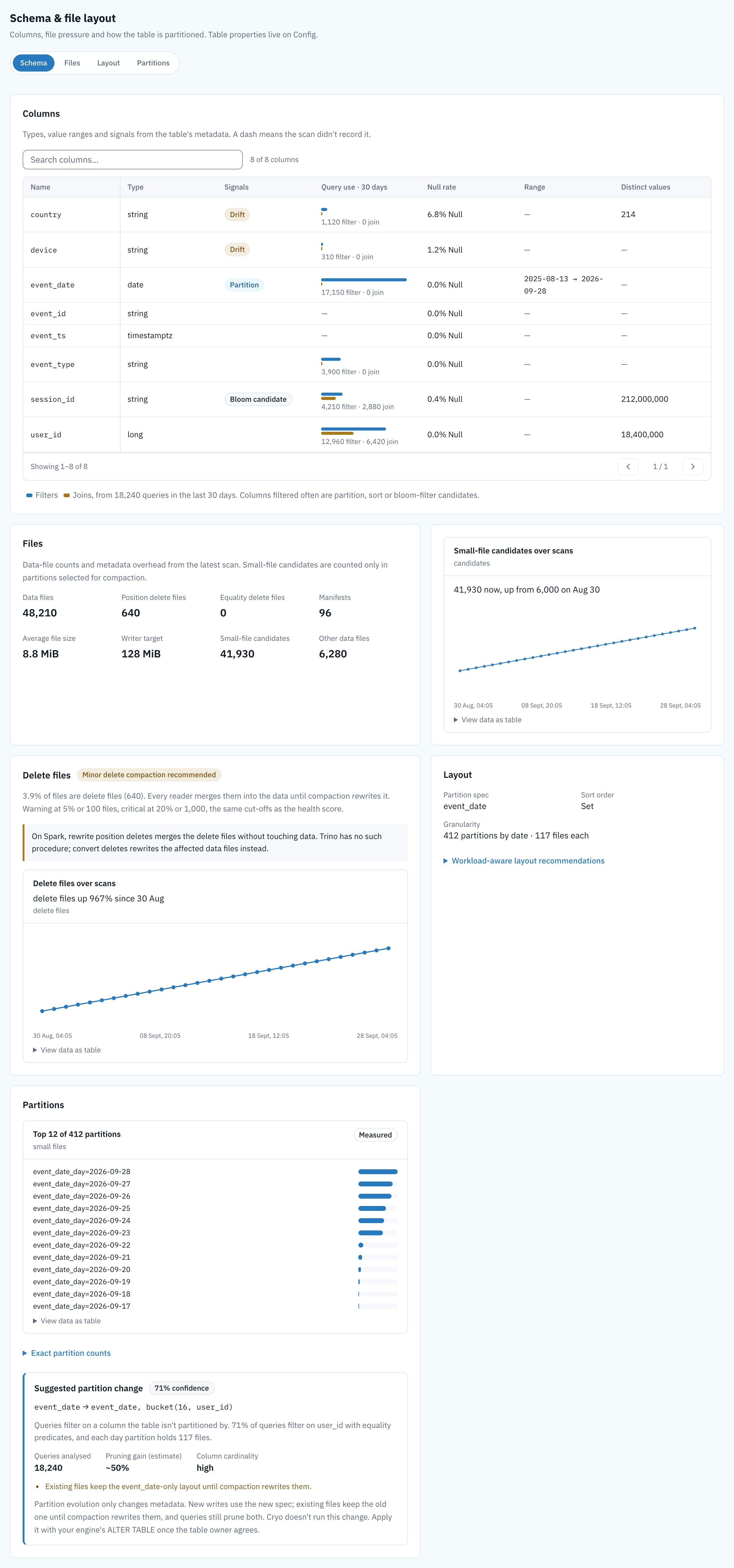

Schema & files#

The physical table: its columns, its files and how they are laid out. The pills at the top jump between sections: Schema, Files, Layout and Partitions. Table properties live on the Config tab.

cryo.local/tables/analytics.events?tab=files

Demo data

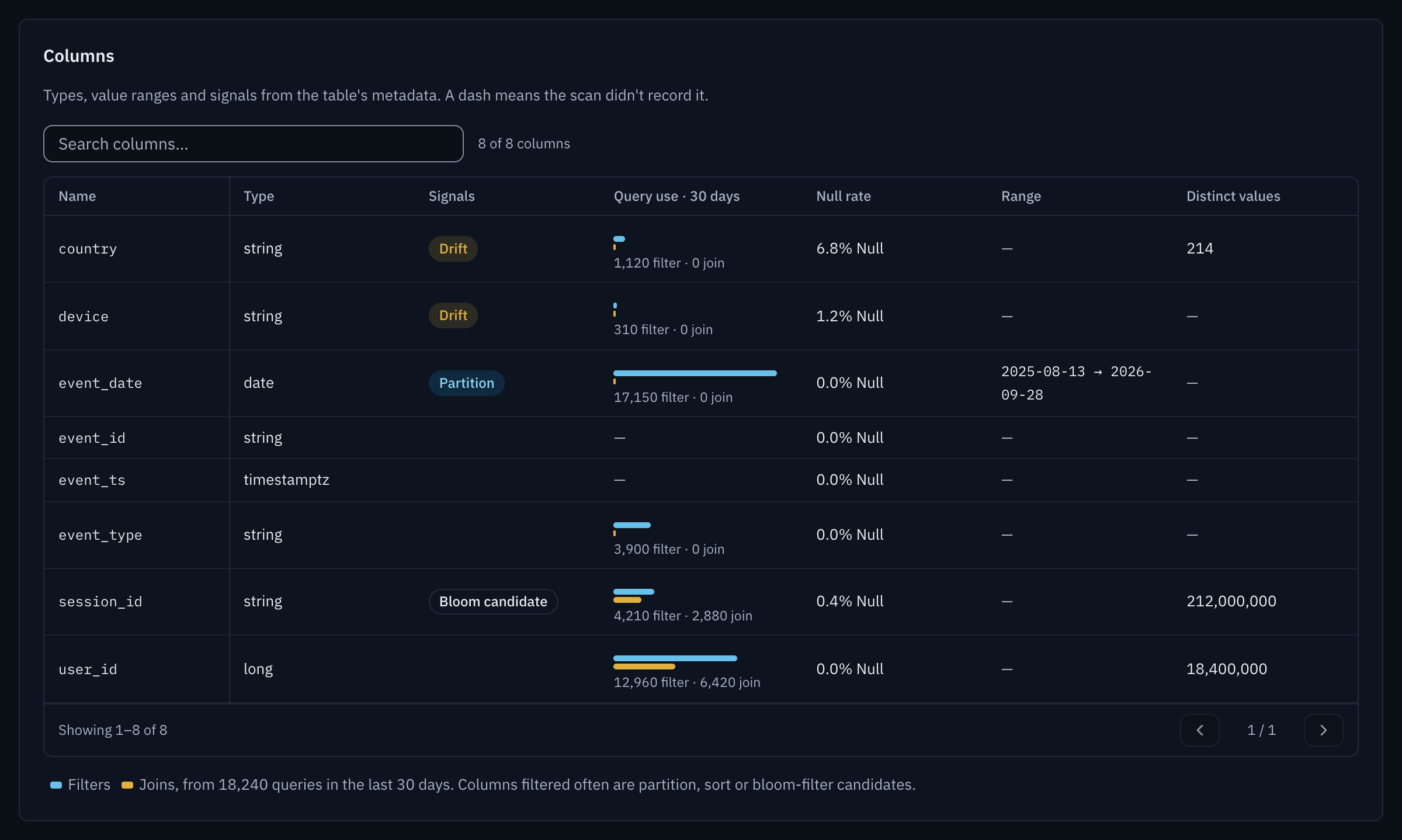

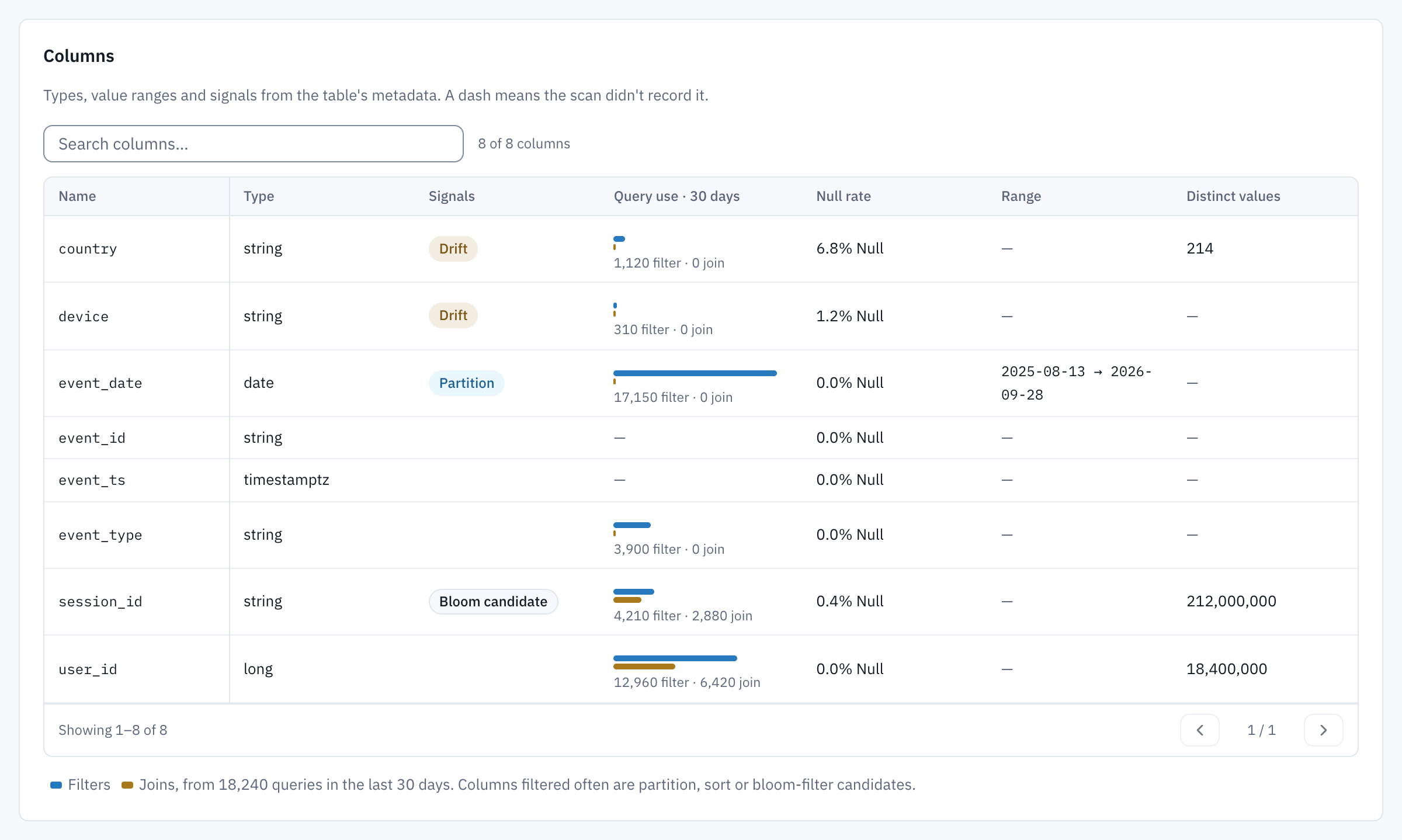

Columns#

Every column with its type, null rate, value range and distinct values. Range, distinct-value and percentile columns appear only when the scan recorded them for at least one column, and a dash marks a single missing value. Signals flag what deserves a look: Drift when the null rate moved from its baseline, Partition for partition sources, and Bloom candidate when query patterns recommend a bloom filter on the column. A recommendation doesn't change files already written.

Query use · 30 days shades each column by how many logged queries filtered on it and joined on it; hover for equality versus range filters and selectivity. Columns that are filtered often are candidates for partitioning, sort order or a bloom filter. Column use comes from per-query logs. A source that records only table-level query counts can't say which columns were used, and the page says so instead of drawing an empty column.

cryo.local/tables/analytics.events?tab=files

Demo data

Files#

Data files, position and equality delete files, manifests, average file size, the writer target and small-file candidates. Small-file candidates are counted only in partitions selected for compaction, so they can be lower than the histogram on Overview. Beside it, Small-file candidates over scans shows whether the backlog is growing.

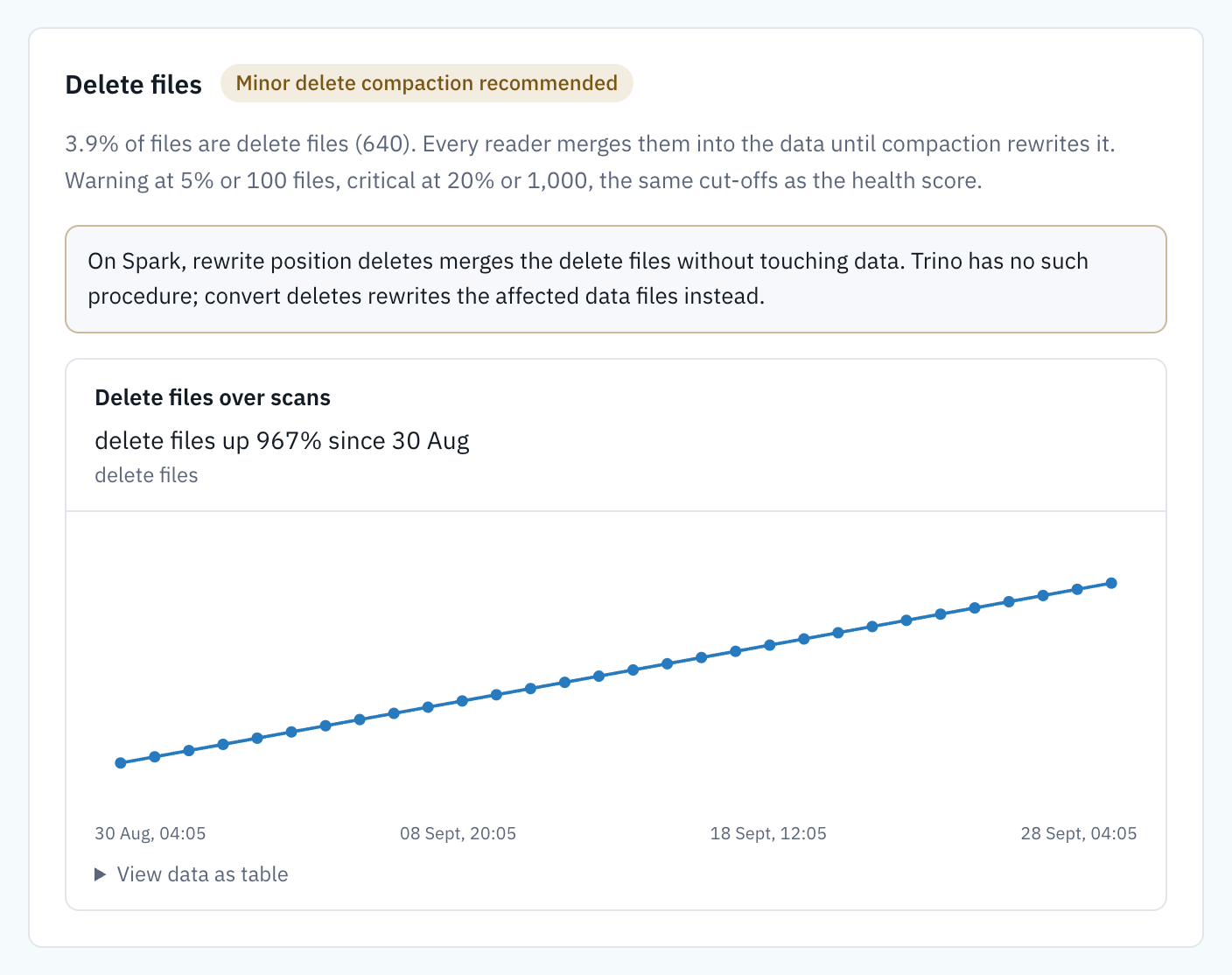

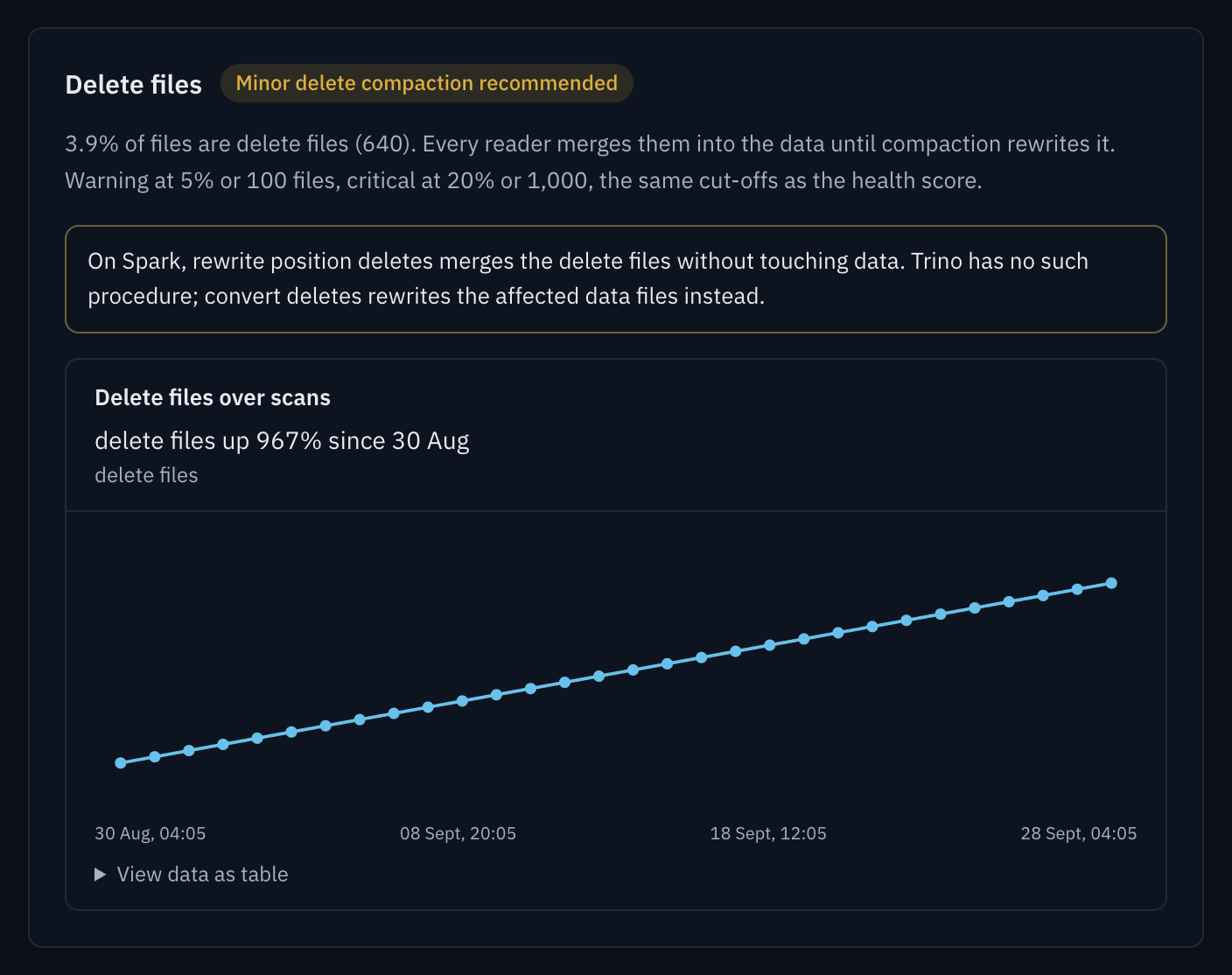

Delete files shows the share of files that are delete files, their trend over scans and a verdict. The verdict uses the same cut-offs as the health score: a warning at 5% or 100 delete files, critical at 20% or 1,000. Minor delete compaction recommended means the delete files can be merged without touching data, which Spark's rewrite position deletes does; Trino has no such procedure, so on Trino convert deletes rewrites the affected data files instead. Major rewrite recommended means convert deletes, which works on both engines.

cryo.local/tables/analytics.events?tab=files

Demo data

Layout#

The partition spec and sort order in words, then the granularity the scan observed, such as 412 partitions by date with 117 files each. A badge appears only when the granularity is a problem. Workload-aware layout recommendations opens reclustering suggestions built from query patterns.

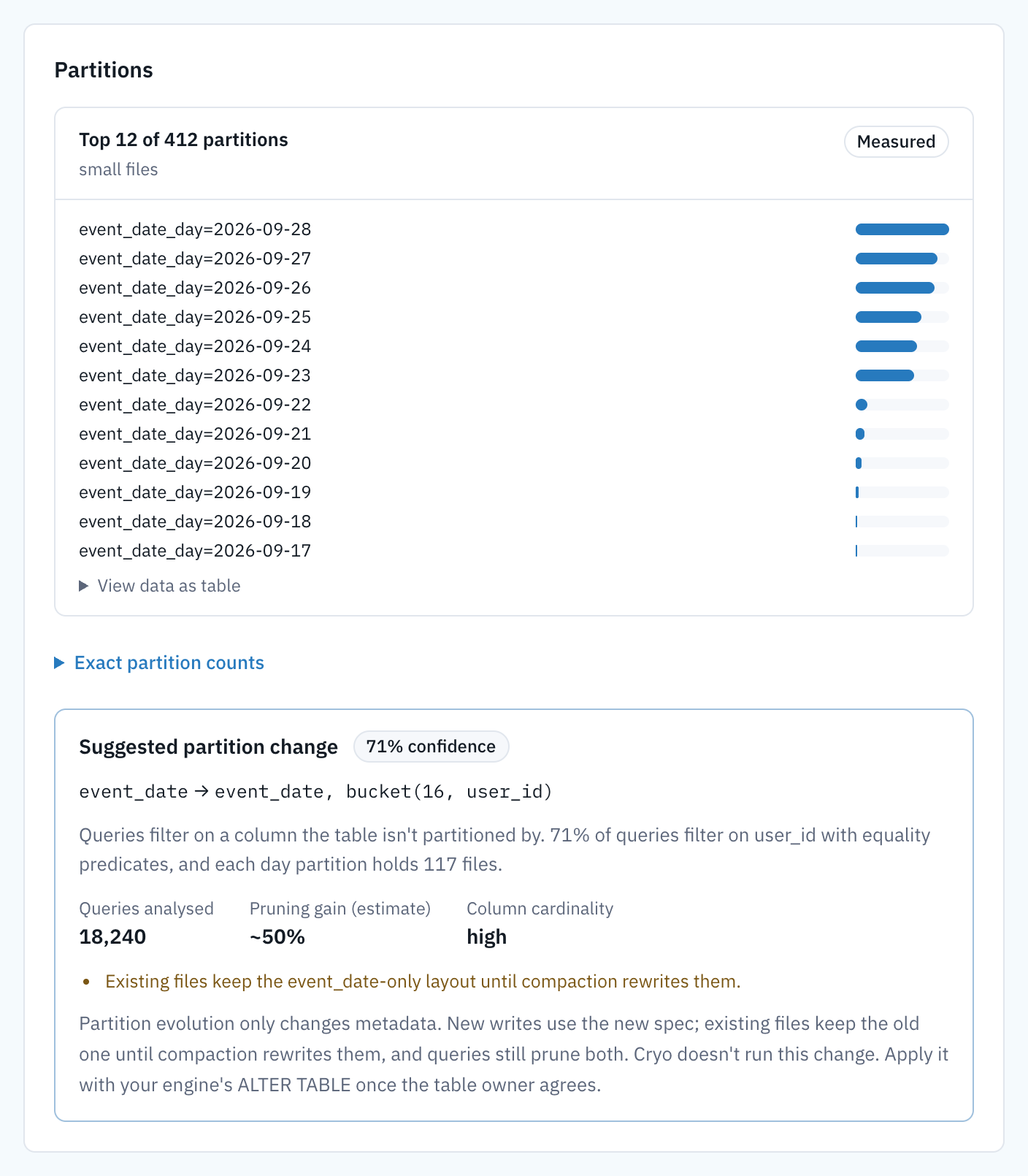

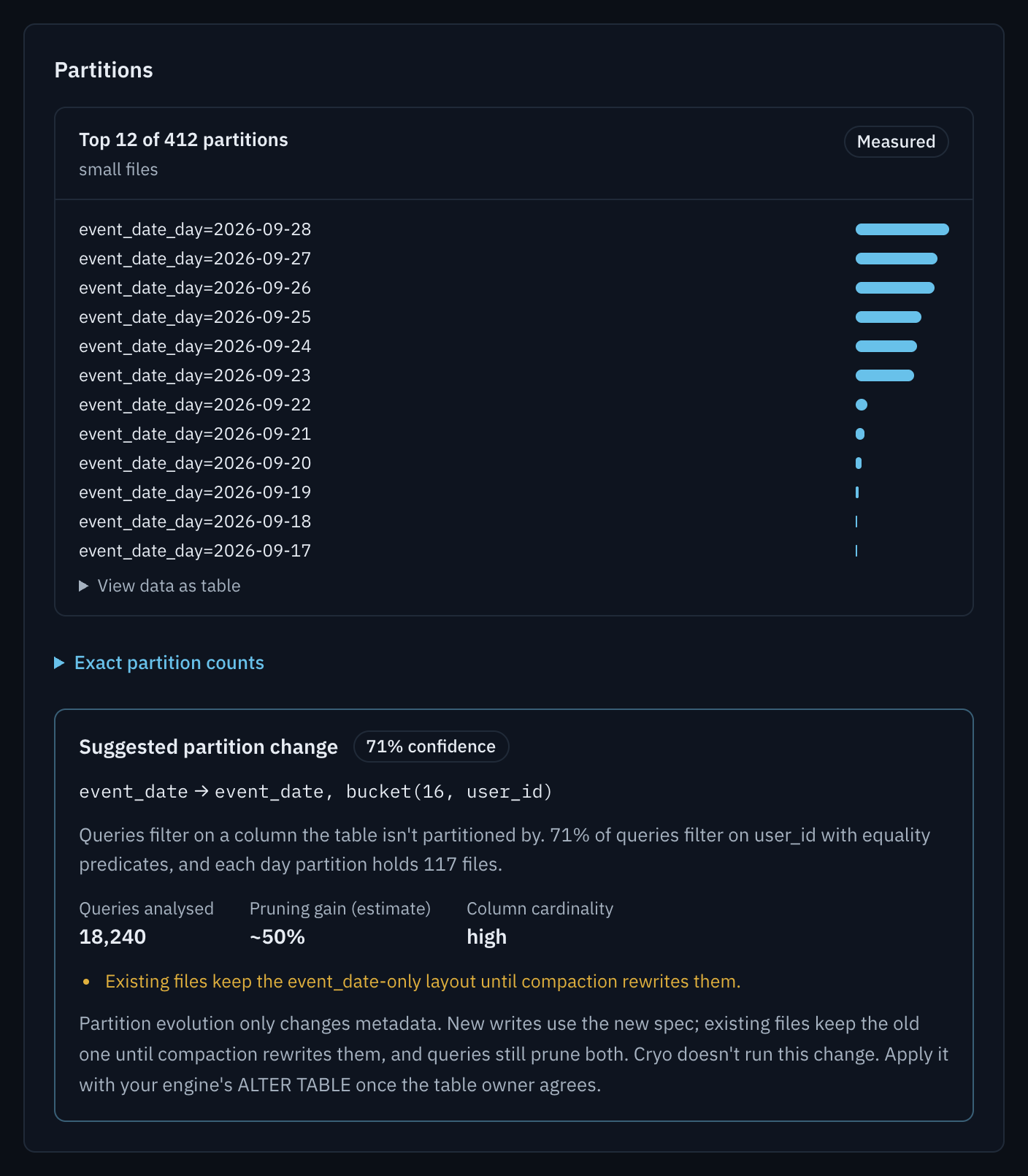

Partitions#

The partitions with the most small files, ranked. Exact partition counts shows the same list as a table with each partition's small-file rate.

When query patterns point to a better partition spec, Suggested partition change shows the current and suggested specs, why, the confidence, how many queries were analysed and an estimated pruning gain. Partition evolution only changes metadata: new writes use the new spec, existing files keep the old one until compaction rewrites them, and queries still prune both. Cryo doesn't run this change; apply it with your engine's ALTER TABLE once the table owner agrees.

cryo.local/tables/analytics.events?tab=files

Demo data

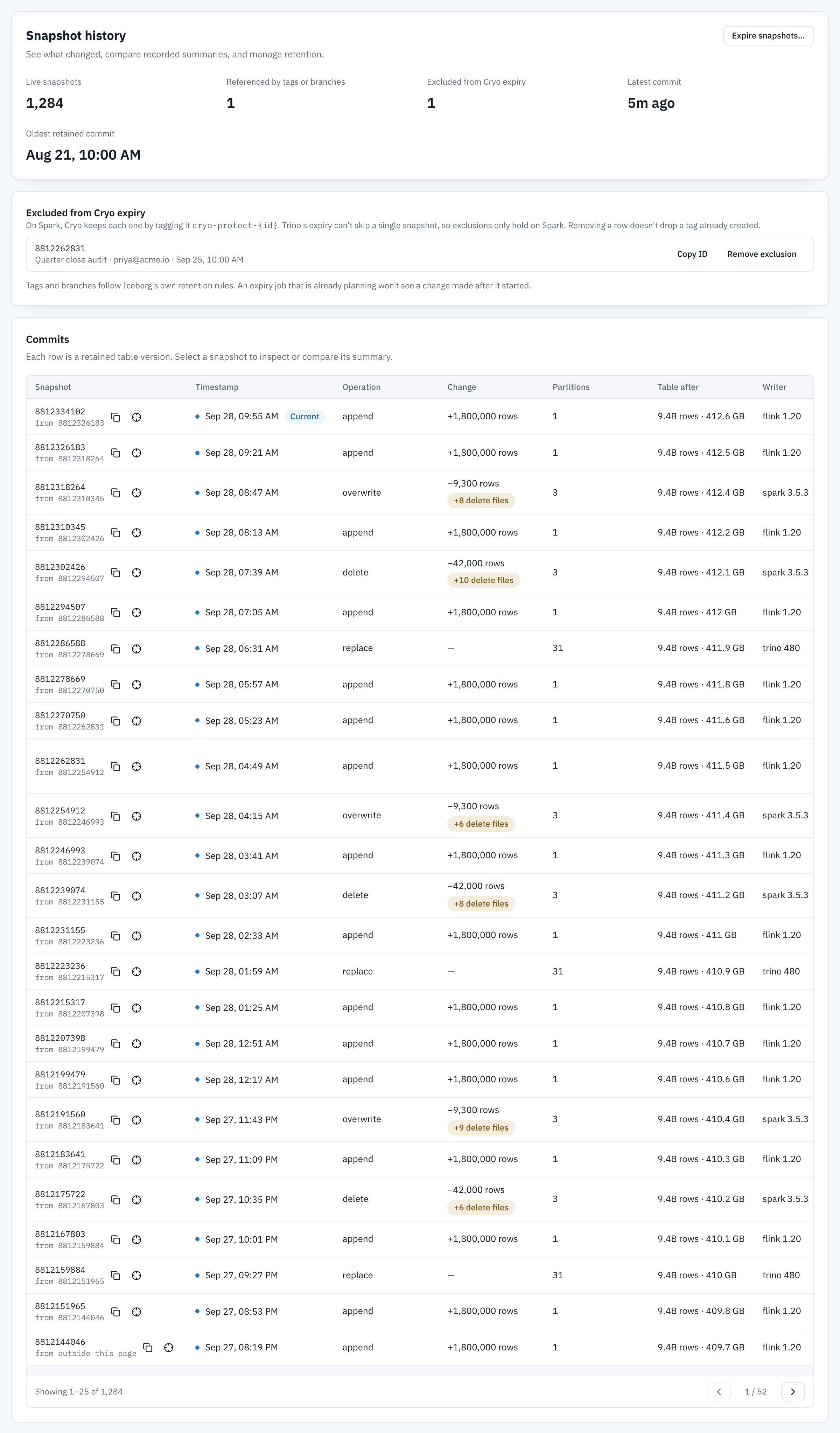

Snapshots#

The table's retained history, read from its metadata.

cryo.local/tables/analytics.events?tab=snapshots

Demo data

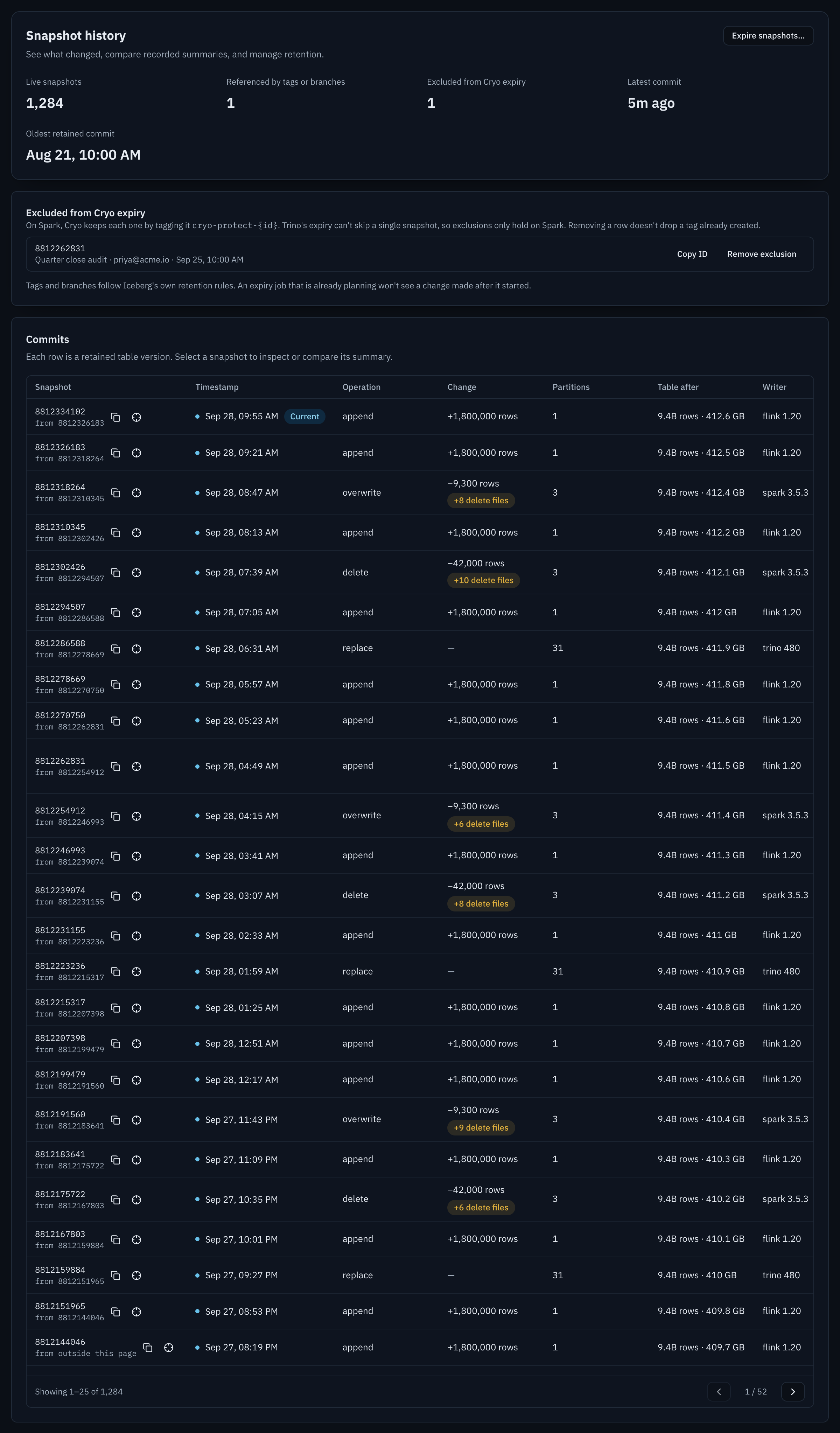

Snapshot history#

Live snapshots, how many are referenced by tags or branches, how many are excluded from Cryo's expiry, and the newest and oldest retained commits. Expire snapshots… queues snapshot expiry for this table. It doesn't list the snapshots that will be removed, so check retention on the Config tab first.

Excluded from Cryo expiry#

Right under the summary: snapshots Cryo's expiry must keep, with a label, who excluded them and when. On Spark, expiry keeps each excluded id by tagging it cryo-protect-<id>. Trino's expire_snapshots can't skip a single snapshot, so exclusions only hold on Spark workflows.

Commits#

One row per retained snapshot: id with its parent underneath, commit time (hover for the sequence number), operation, the change it made, partitions changed, the table's rows and size after it, the writer, and retention: tags, branches and whether it's excluded from Cryo's expiry. Change shows rows added and removed, and a badge when the commit added delete files. Writer names the engine and version from the commit's summary, such as Trino, Spark or Flink; hover for the user and query or job id. Selecting a snapshot opens its full summary: rows, data files and bytes added and removed, delete files by kind, partitions changed, and who committed it. Anything the writer didn't record says so, rather than showing zero. Select snapshots to compare their recorded summaries. A row's actions can Protect the snapshot, which excludes it from Cryo's expiry, or roll the table back to it after a confirmation.

cryo.local/tables/analytics.events?tab=snapshots&snapshot=8812286588

Demo data

Maintenance#

Three numbered steps, then the evidence the planner ranks compaction with.

cryo.local/tables/analytics.events?tab=maintenance

Demo data

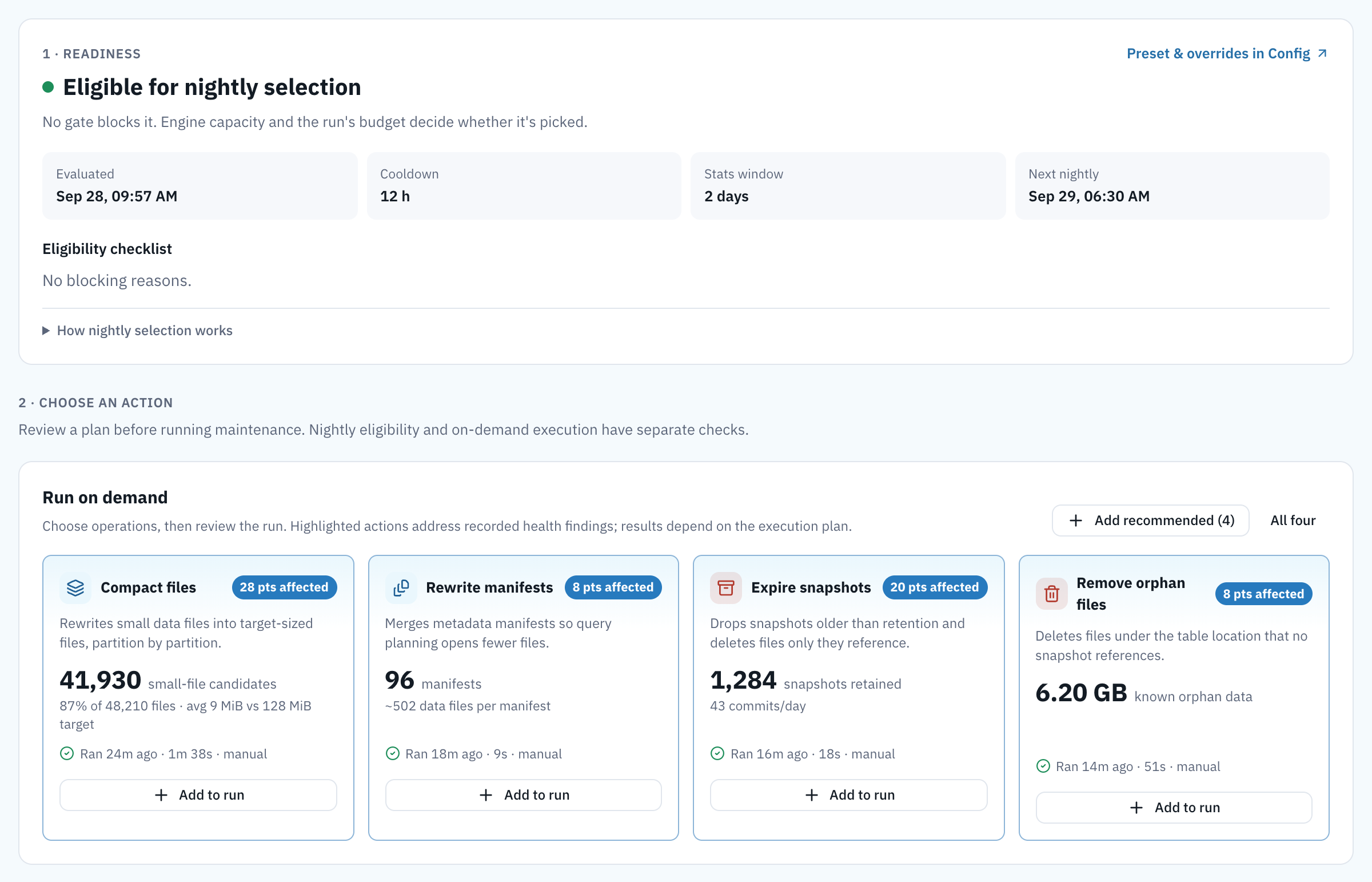

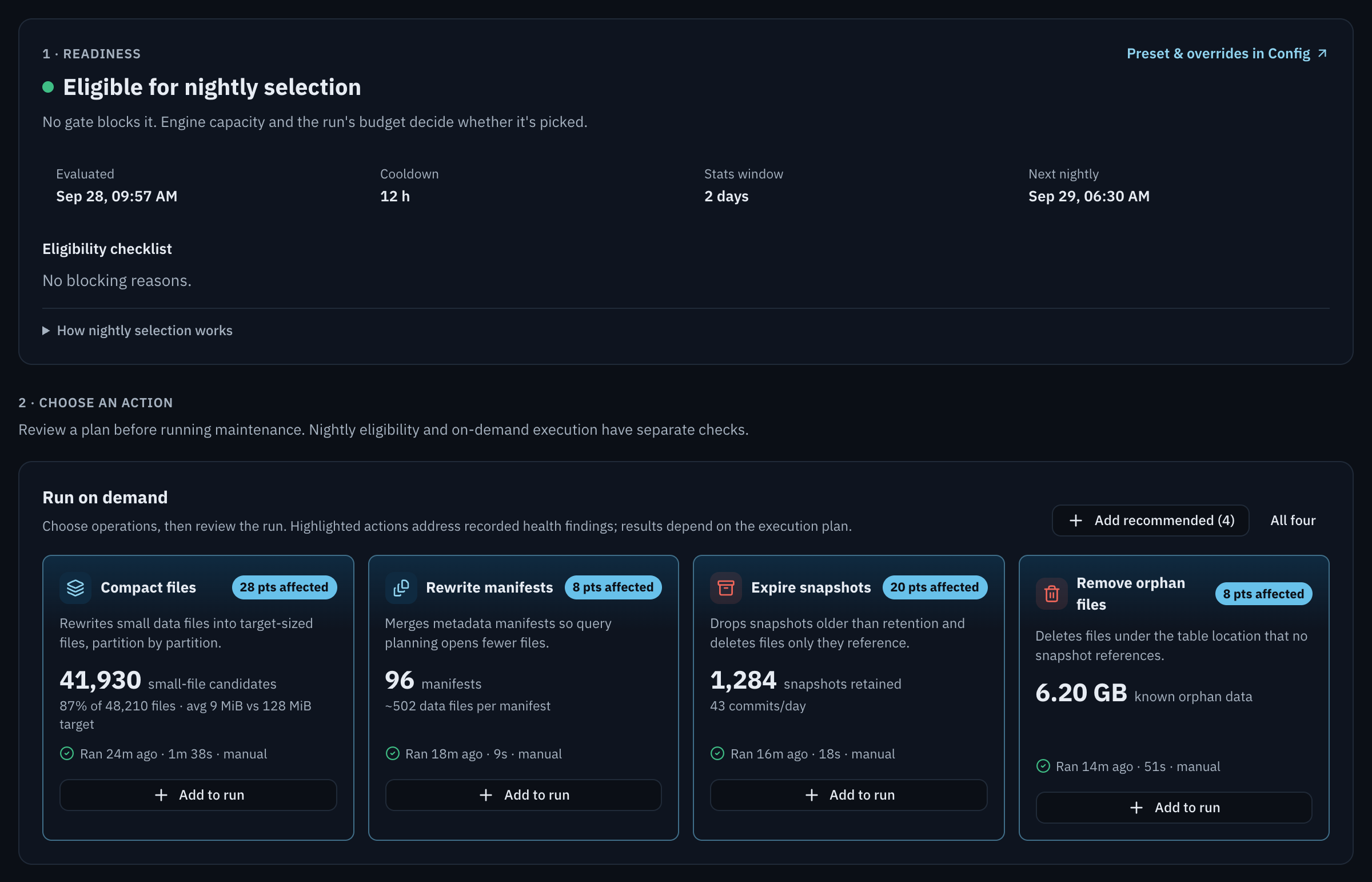

Readiness#

Nightly selection says whether tonight's scheduled run may pick this table. A table can be eligible and still not be picked, because engine capacity and the run's budget decide. The tiles show when eligibility was last evaluated, the cooldown between maintenance runs, how fresh scan stats must be, and the next nightly run. The Eligibility checklist lists every blocking reason, and How nightly selection works explains the gates. The preset and overrides that set these thresholds are on the Config tab.

Choose an action#

Run on demand has one card per operation, each with the measurement that motivates it, the score points it affects and when it last ran. Add recommended adds the operations with score findings behind them, and All four adds every one. You review the plan before it runs. Nightly eligibility and on-demand runs have separate checks, so a table that isn't eligible tonight can still be maintained on demand.

cryo.local/tables/analytics.events?tab=maintenance

Demo data

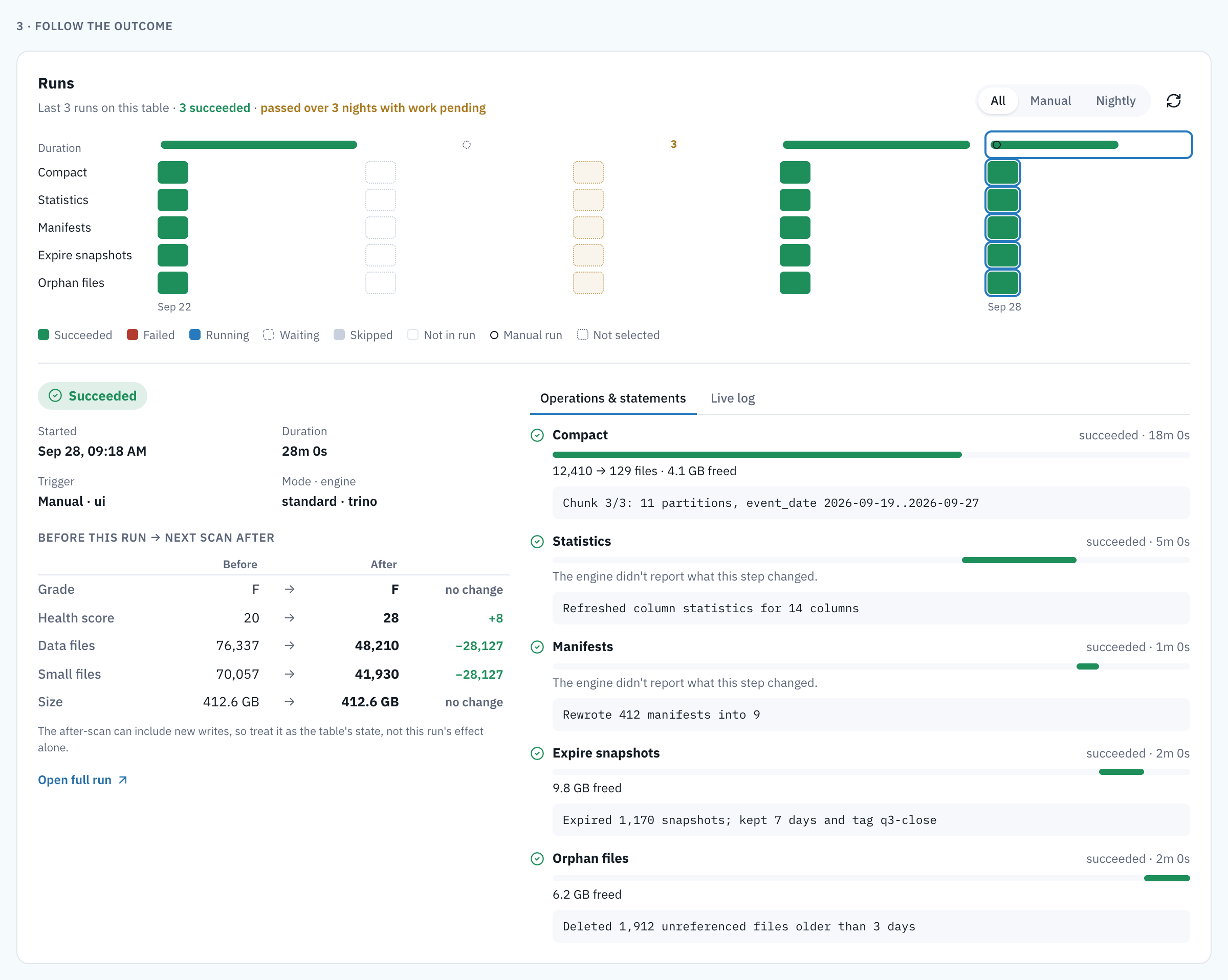

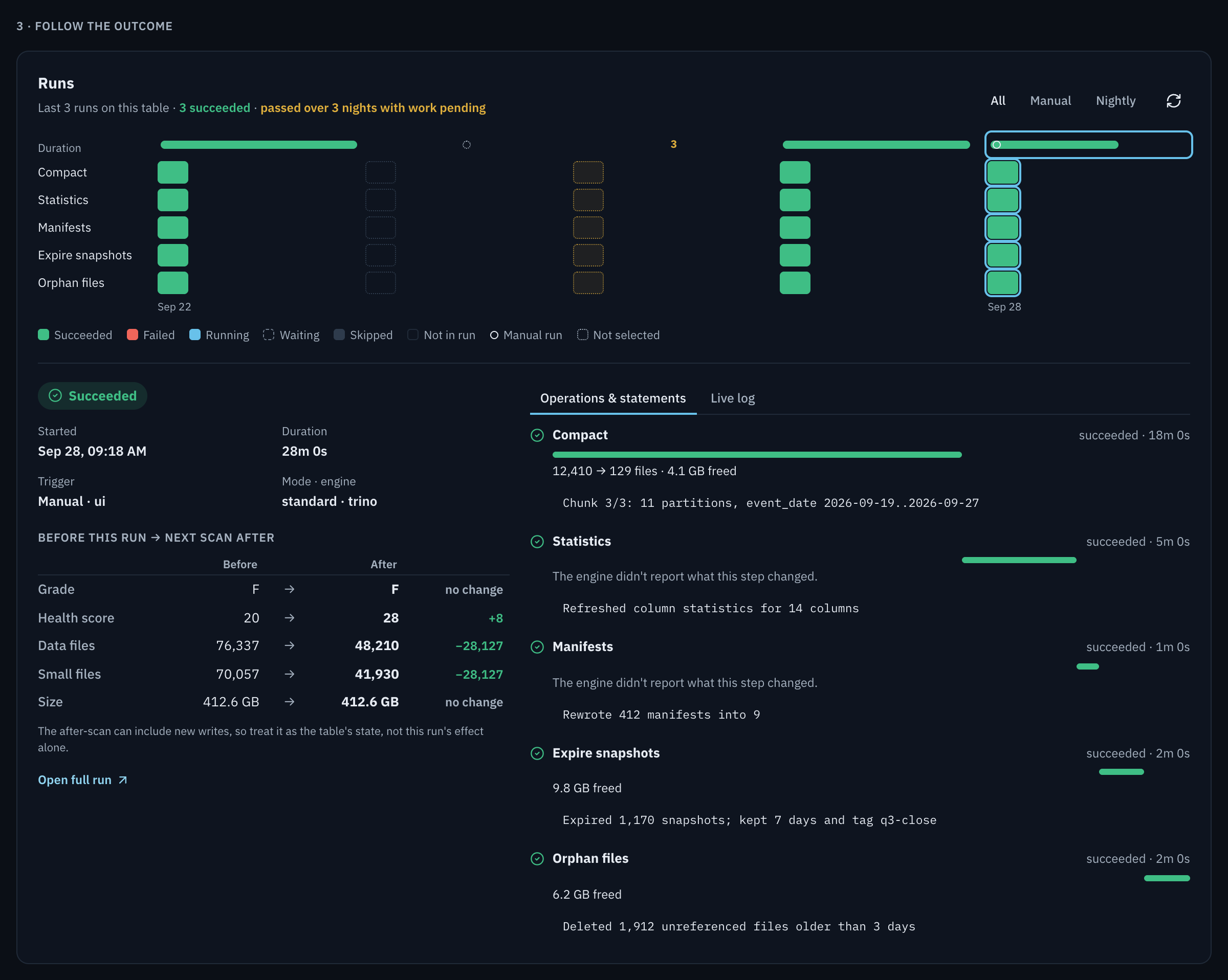

Follow the outcome#

Runs is a grid of operations by run, filterable to manual or nightly runs. Selecting a run shows its status, trigger, mode and duration; the table's stats before the run and at the next scan; and, under Operations & statements, each operation in order with its timing and recorded statement. Live log streams log lines while a run is going and keeps them for 24 hours; after that, the recorded statements are the log. Open full run goes to the run page.

The grid also shows the nights the scheduled run looked at this table and didn't pick it, merged when consecutive nights had the same reason. Each one says why: cooling down, scan too old, excluded, on hold, retry backoff, nothing to do, or over the night's table cap. A stripe marks nights when the table needed work but wasn't picked. Select one to see the nights it covers and what to do about it. Each step in a run's detail also shows what the engine reported it did, such as files in and out or bytes freed, or says it didn't report.

cryo.local/tables/analytics.events?tab=maintenance

Demo data

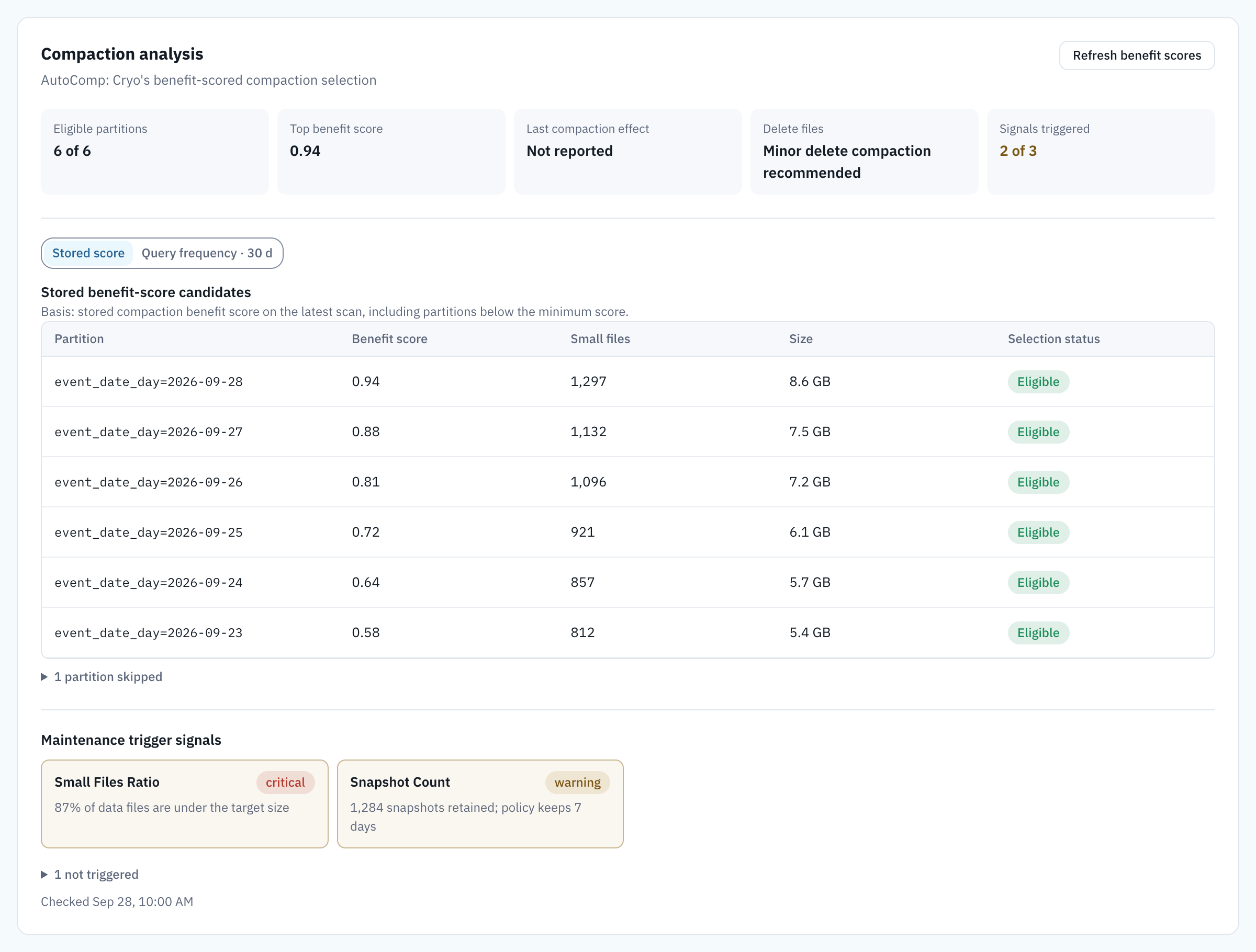

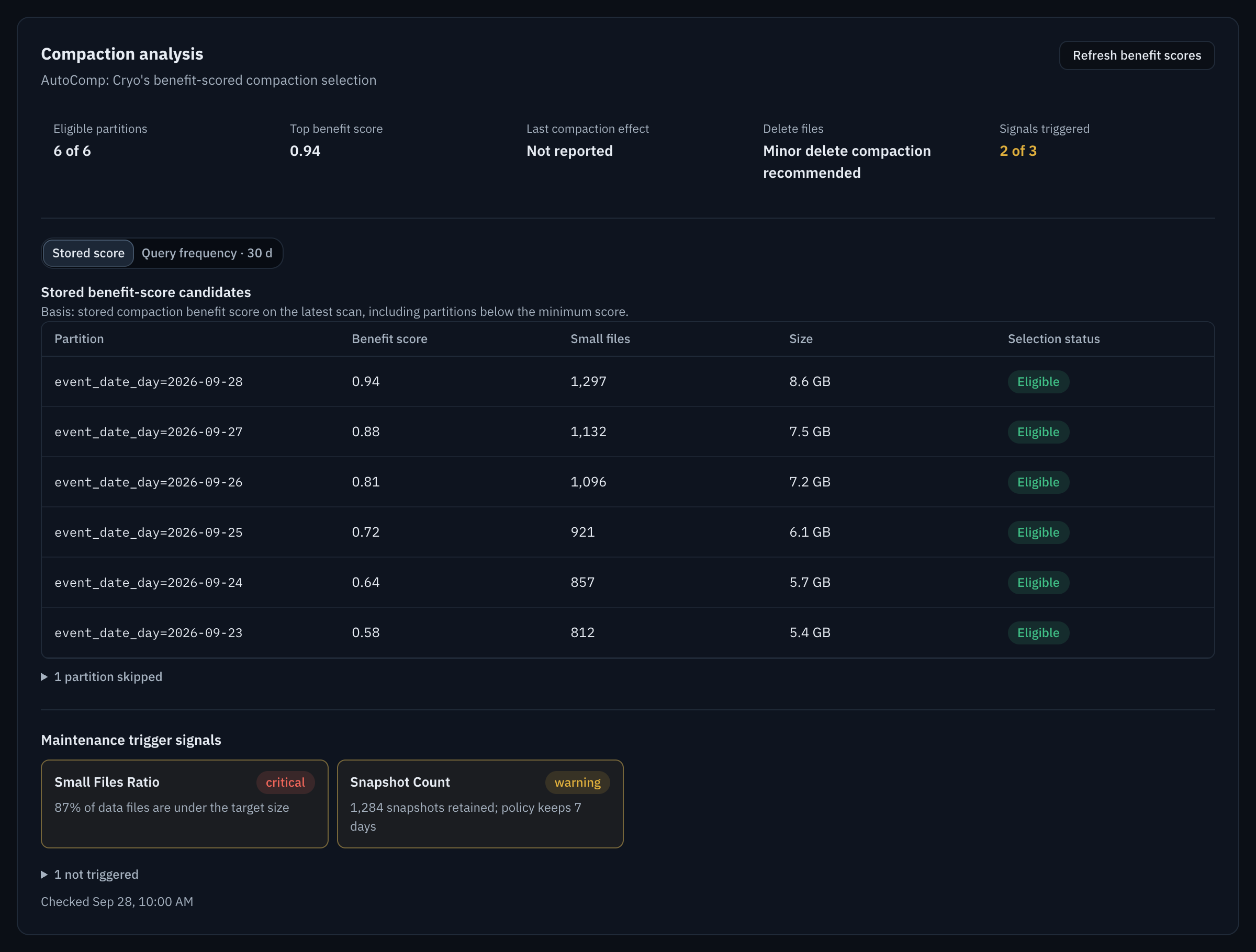

Compaction analysis#

Why some partitions are compacted before others. The tiles at the top summarise it: how many partitions are eligible, the top benefit score, what the last compaction achieved, whether delete files need their own pass, and how many trigger signals fire. Below, one ranking at a time: Stored score ranks partitions by the benefit score stored with the last scan, with skipped partitions and why; Query frequency · 30 d ranks by how often each partition is read. They are different populations, so the toggle keeps them apart. Maintenance trigger signals lists the triggered signals first and collapses the rest. Refresh benefit scores recomputes the ranking.

Config#

Everything that decides how the table is maintained and written, in one place.

cryo.local/tables/analytics.events?tab=config

Demo data

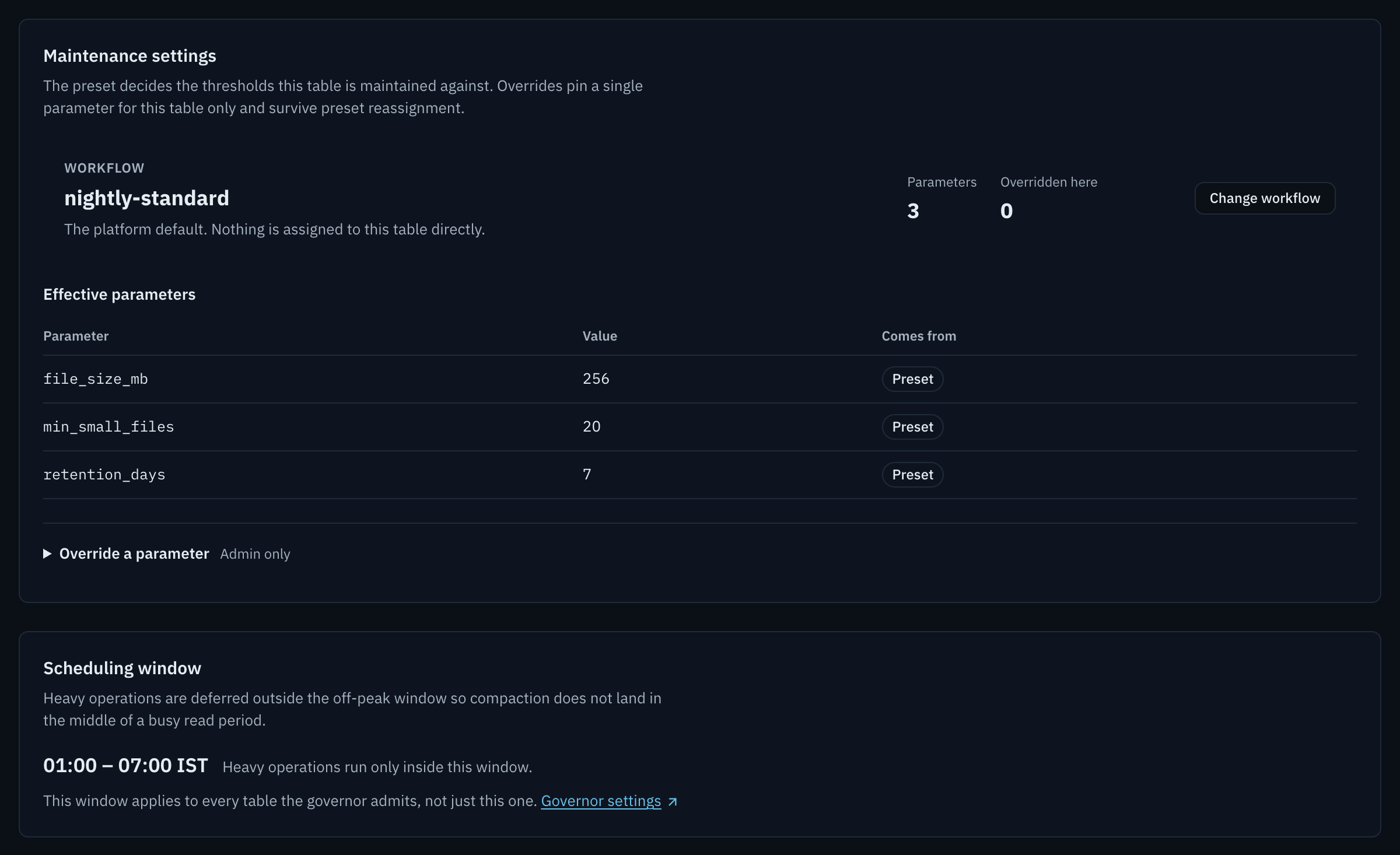

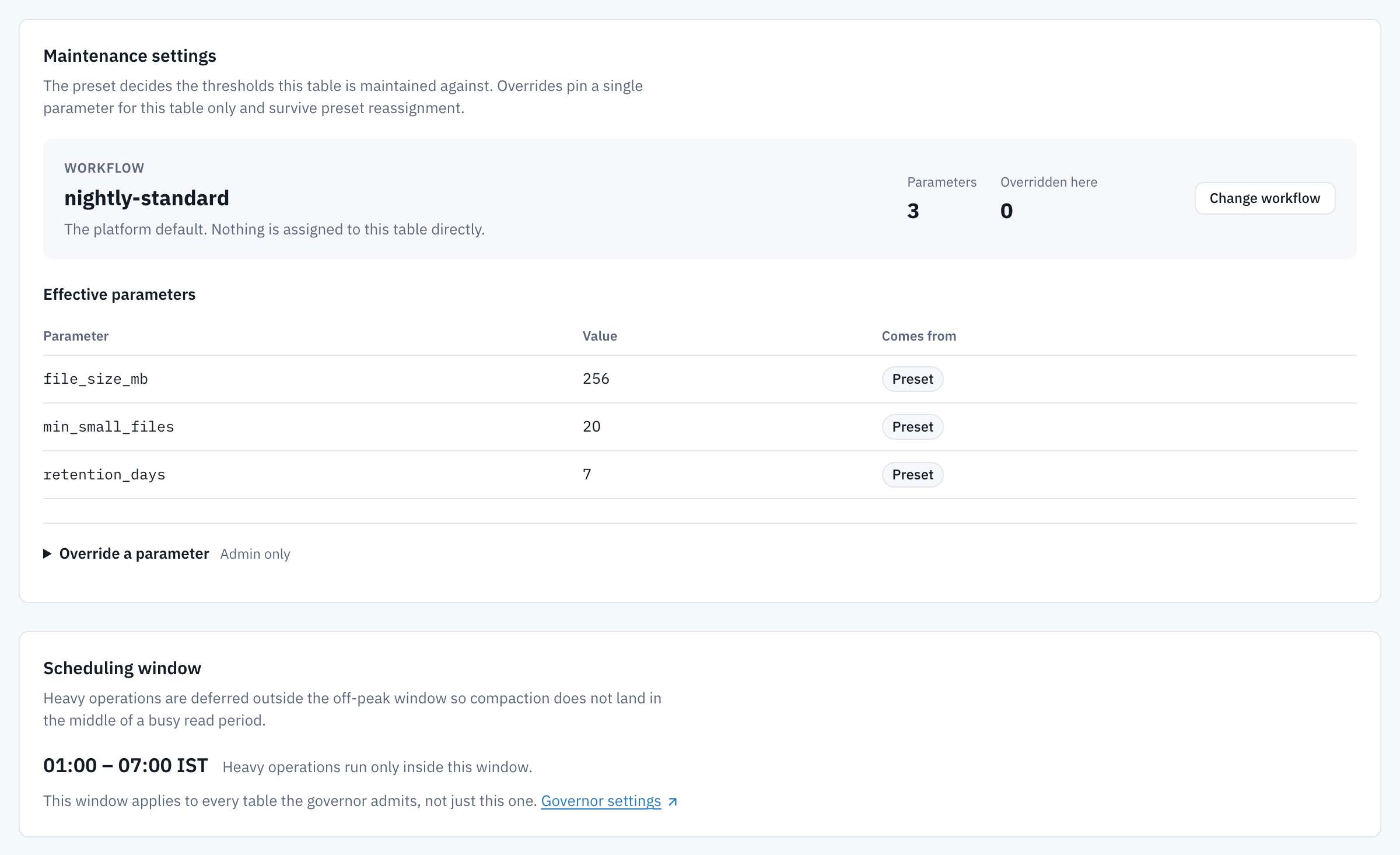

Maintenance settings#

The workflow (preset) that maintains the table and how it was chosen: assigned by an operator, picked by a rule, or the platform default. Change workflow reassigns it. Effective parameters lists every value the planner uses and where it comes from, Preset or Override; an overridden row also shows the preset value it replaced. Override a parameter lets an admin pin one value for this table. Overrides survive a change of workflow.

Scheduling window#

The off-peak window in which heavy operations run. It is a governor-wide setting, so it is shown here but changed in governor settings.

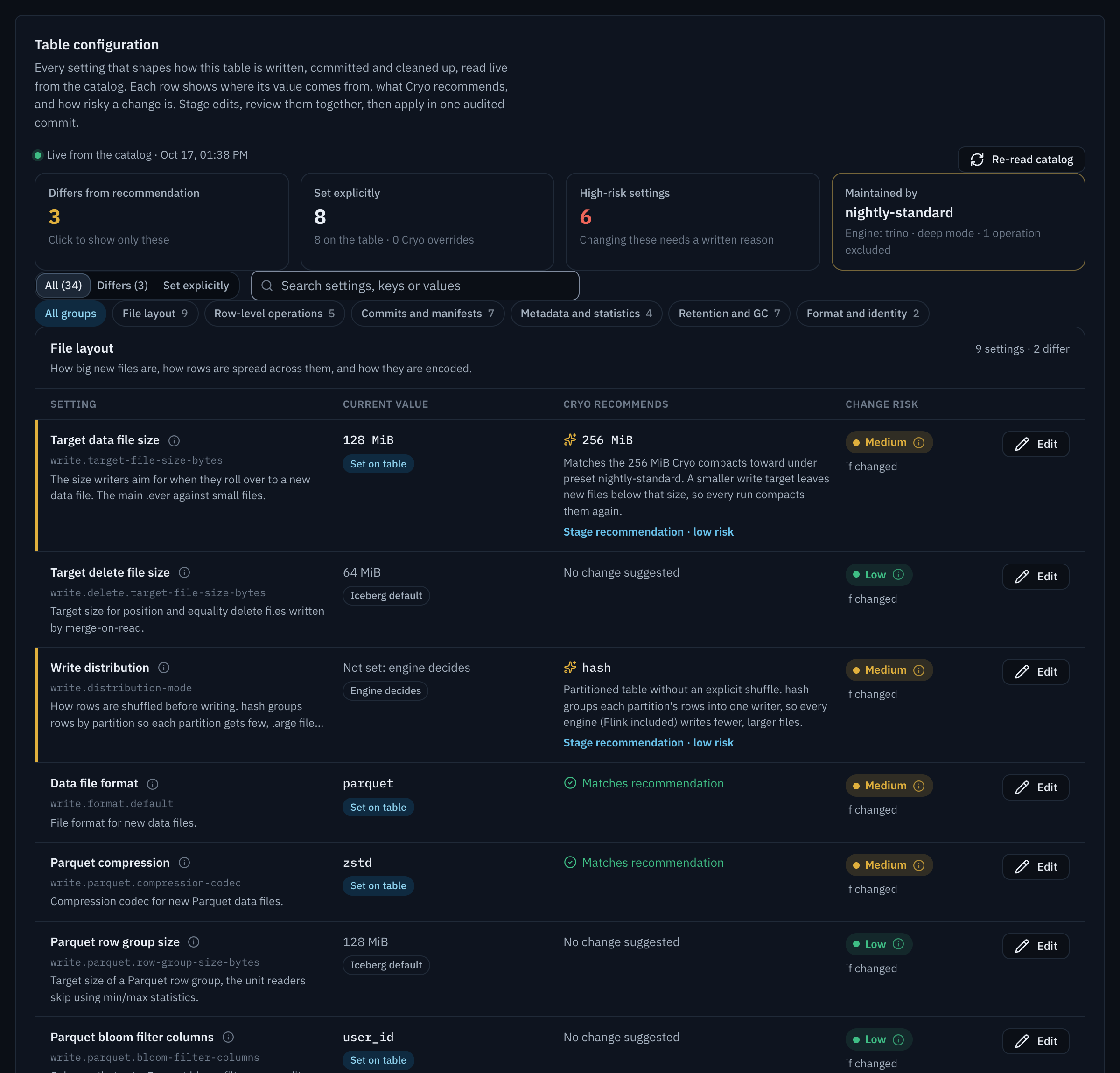

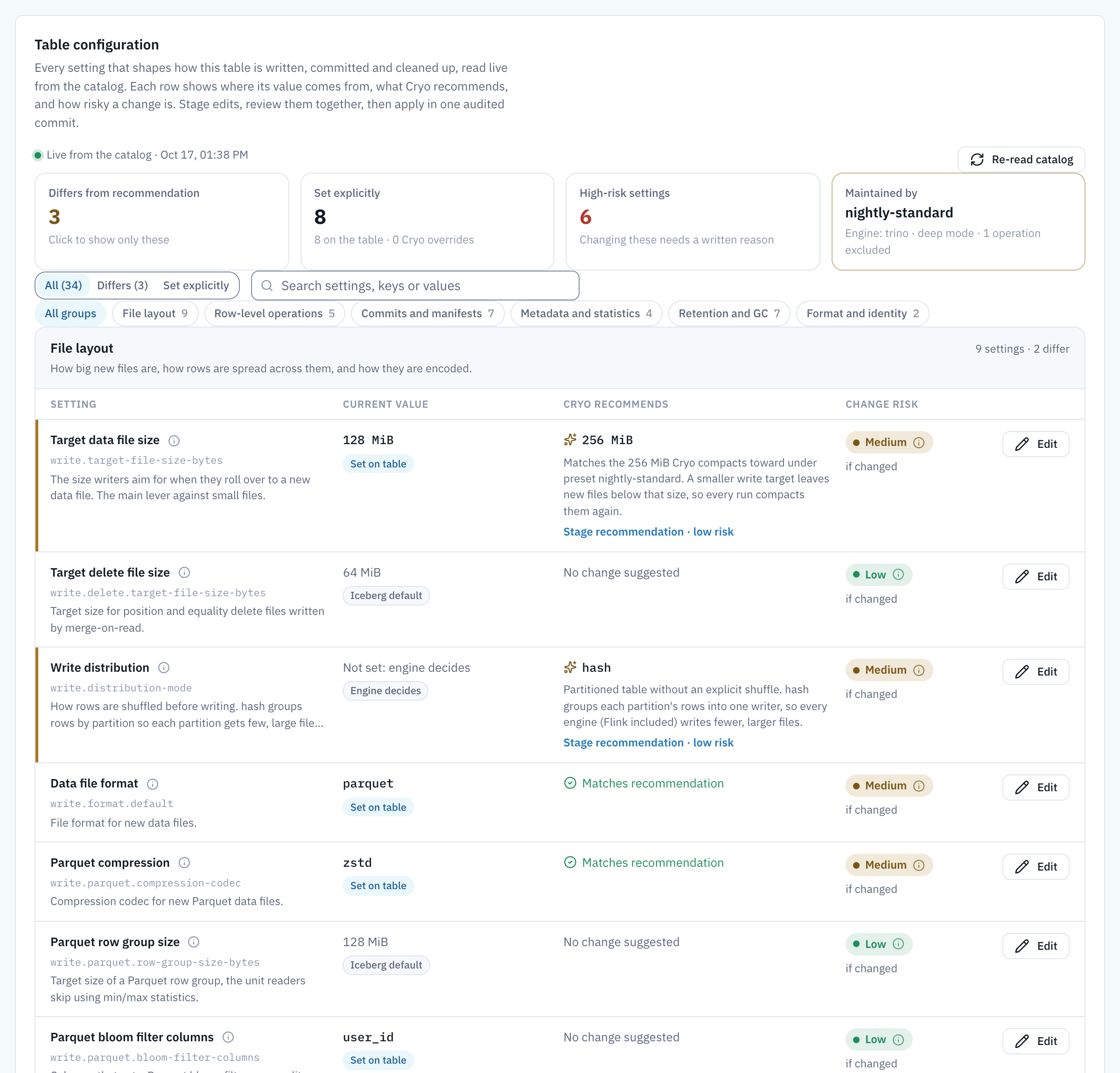

Table configuration#

Every setting that shapes how the table is written, committed and cleaned up, read live from the catalog. Each row shows the current value and where it comes from, Cryo's recommendation, and the risk of changing it in that direction. The ⓘ next to a name explains the setting, and the risk badge explains the consequence.

cryo.local/tables/analytics.events?tab=config

Demo data

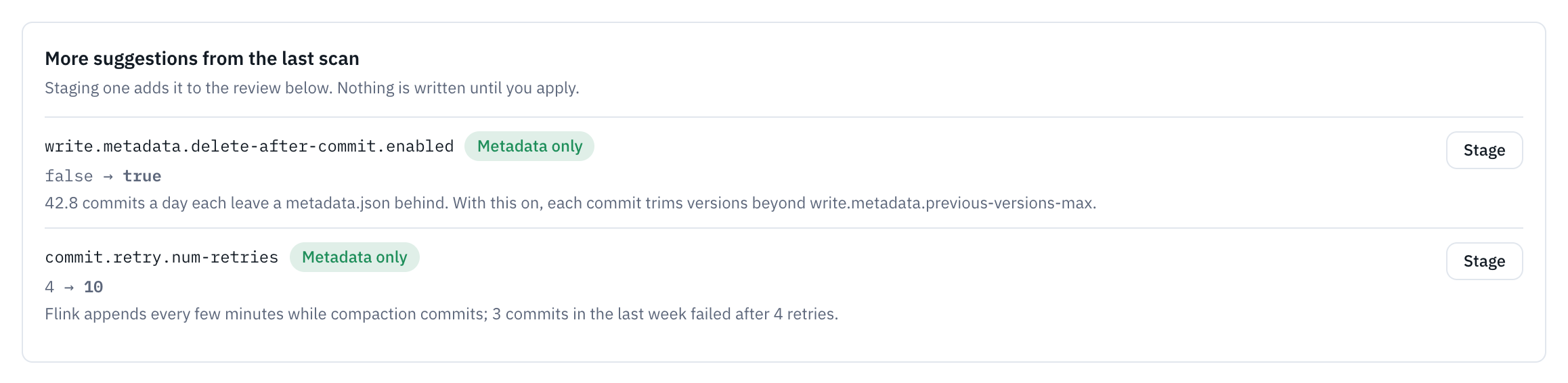

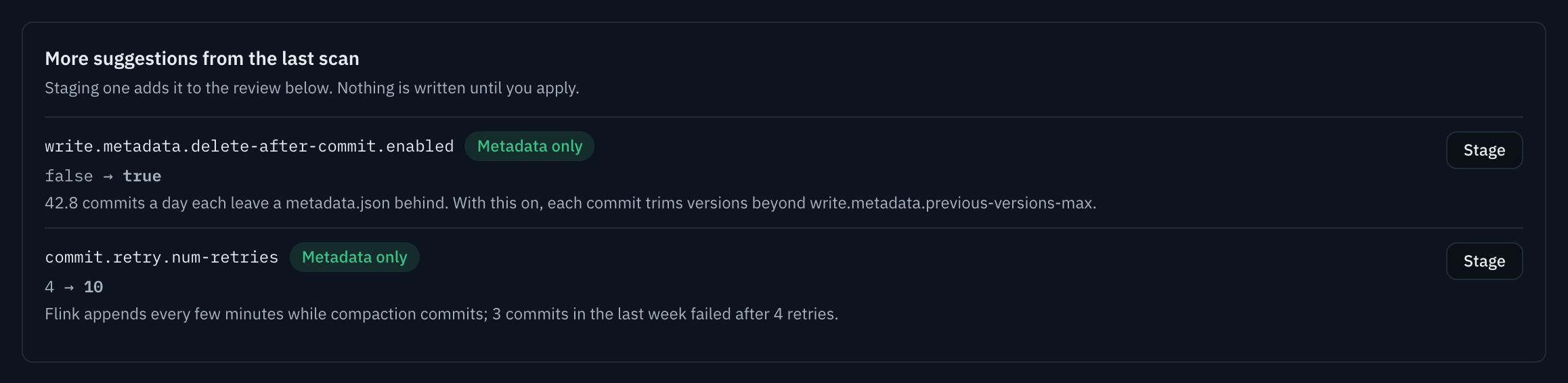

Below the inventory, More suggestions from the last scan lists what the scan's property checks suggest where no row already makes a recommendation, so a property never gets two answers. Stage adds the suggestion to the same review as a row edit.

cryo.local/tables/analytics.events?tab=config

Demo data

1. Stage

   Edit a value with its typed editor, or stage Cryo's recommendation. Nothing is written yet, and staged rows stay highlighted.

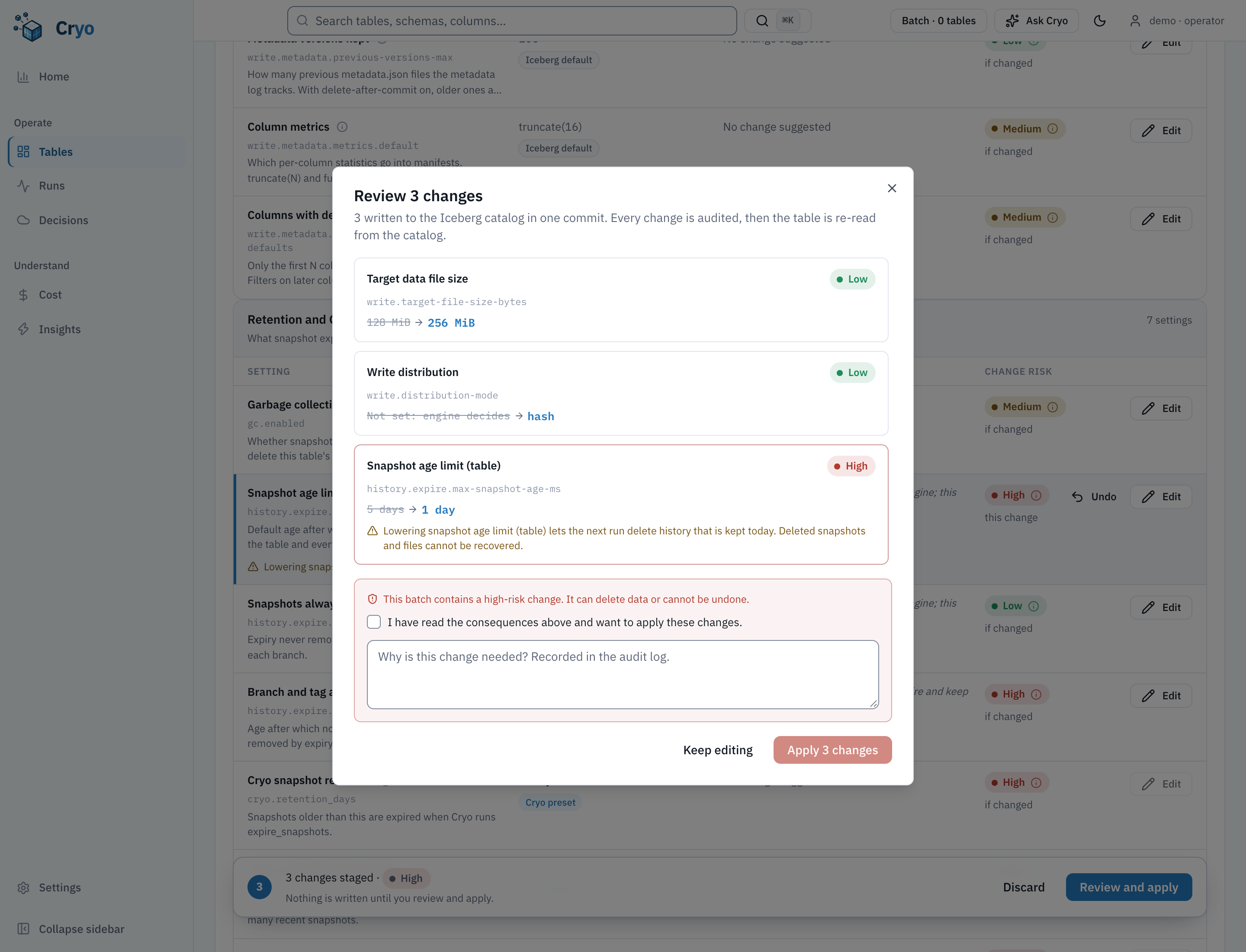

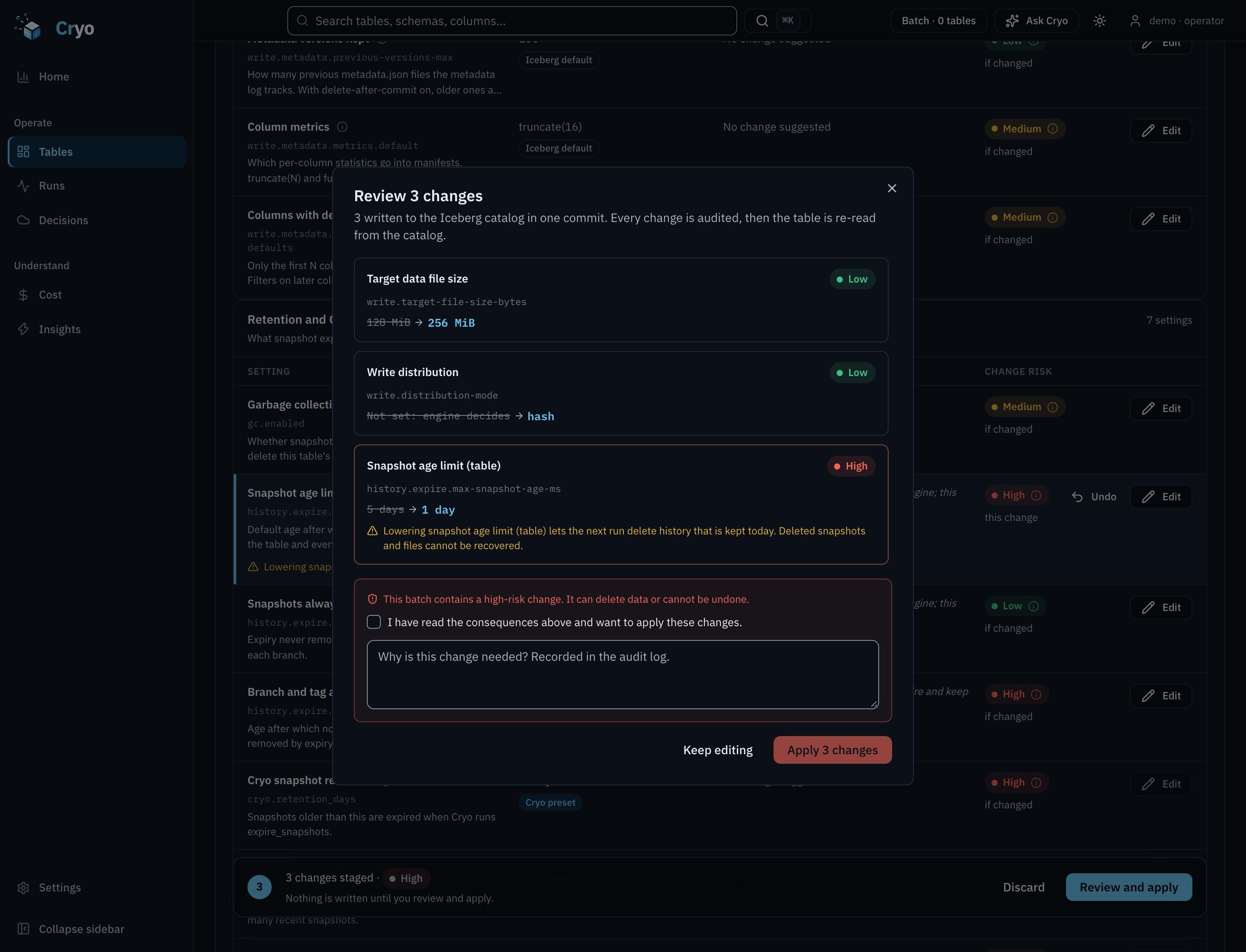

2. Review

   Review and apply previews every staged change with its risk. A reason is optional, except that a batch with a high-risk change needs both a reason and an explicit acknowledgement.

3. Apply

   The changes are committed to the catalog in one transaction and audited, and the page re-reads the table to show the result.

cryo.local/tables/analytics.events?tab=config

Demo data

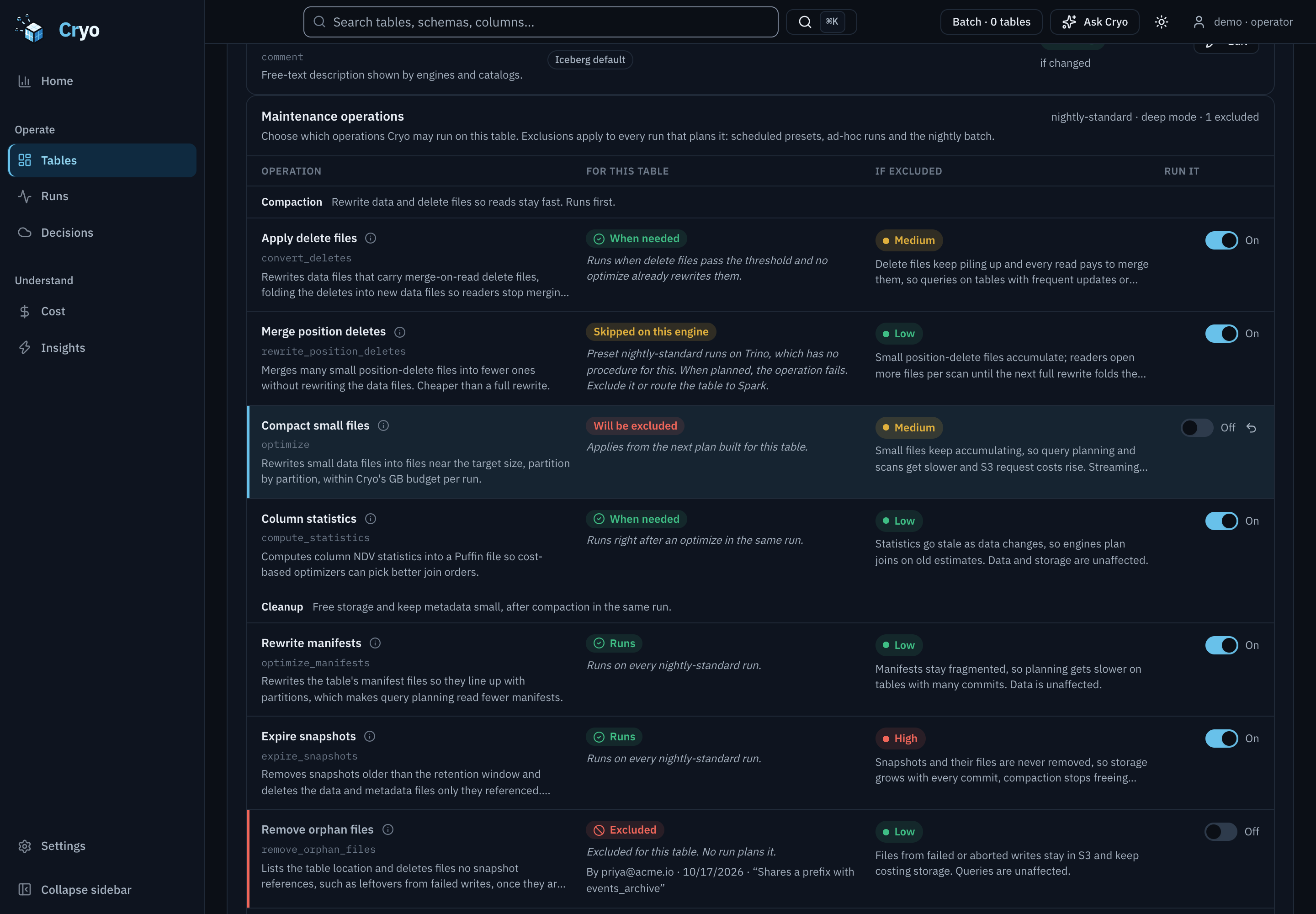

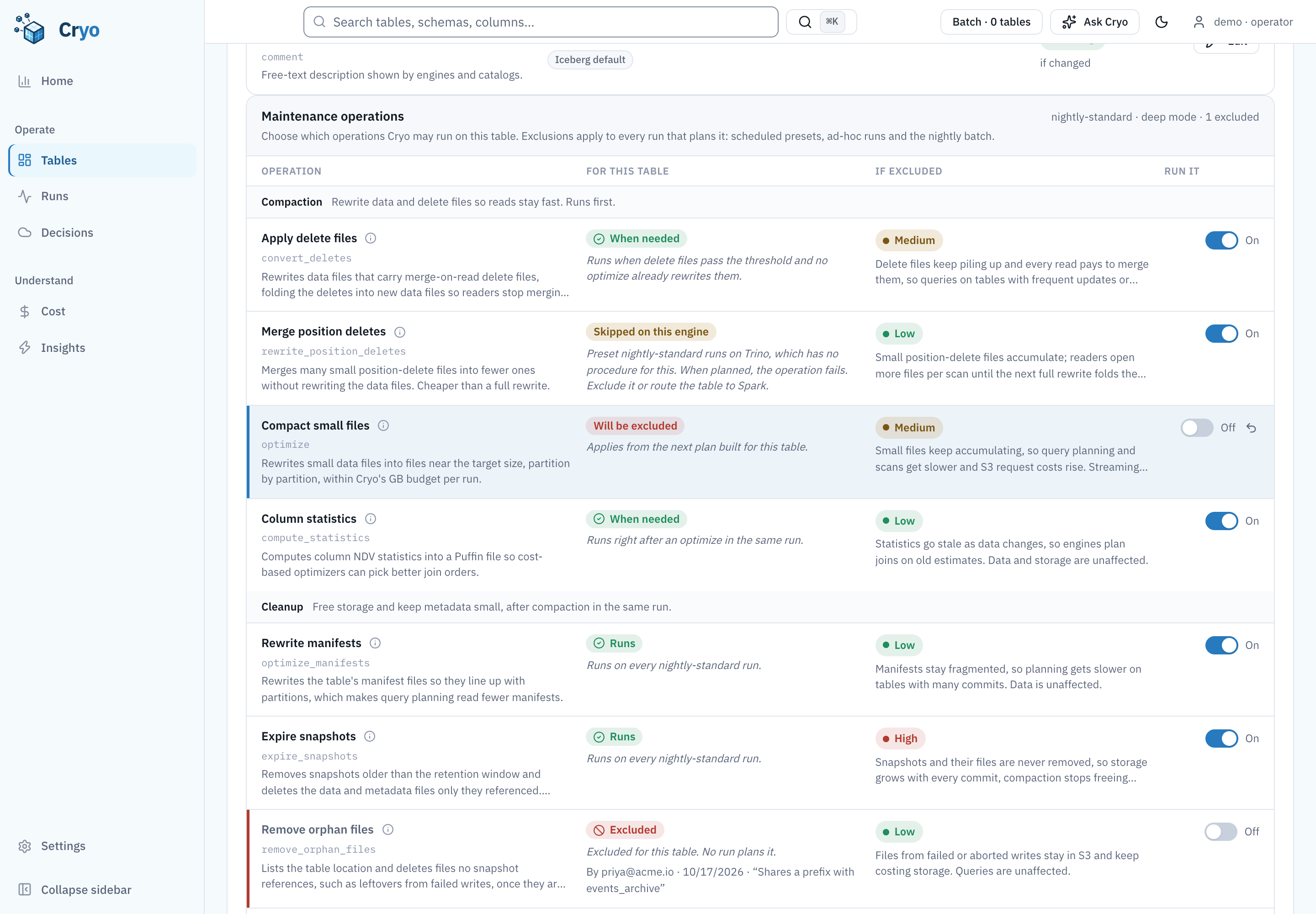

Maintenance operations lists the seven operations in the order Cryo runs them, grouped into compaction and cleanup. Each shows whether it runs for this table under its workflow, and why not if it doesn't. Switch one off to exclude it for this table only; the planner then drops it from every plan, nightly or on demand, and the plan says why. Saving needs a reason, and excluding a high-risk operation such as snapshot expiry needs an acknowledgement.

cryo.local/tables/analytics.events?tab=config

Demo data

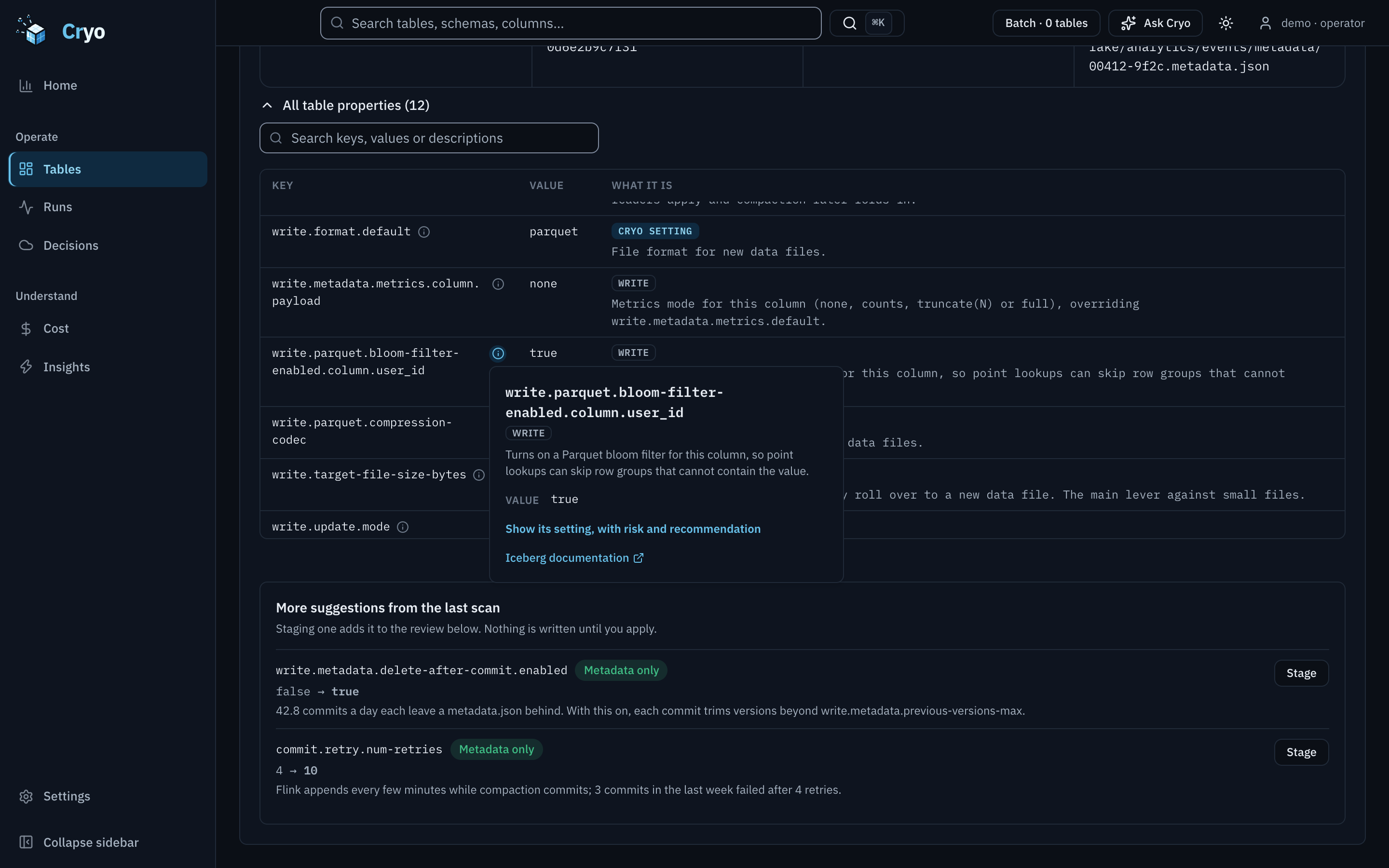

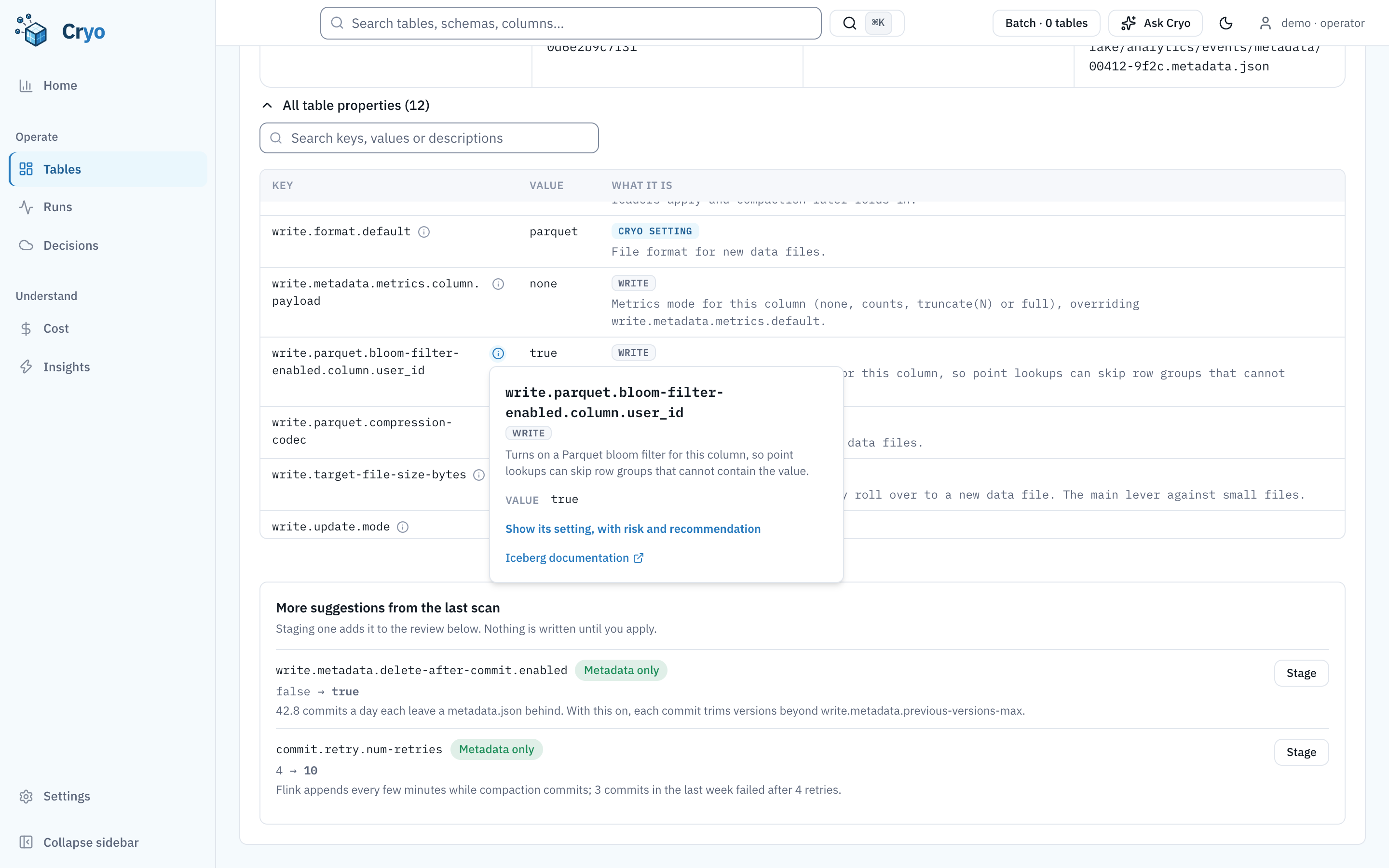

Table metadata shows the format version, UUID, locations, schema, partition spec, sort order and refs. All table properties lists every property on the table with a short explanation of what it does. The ⓘ links to the matching setting row and the Iceberg documentation.

cryo.local/tables/analytics.events?tab=config

Demo data

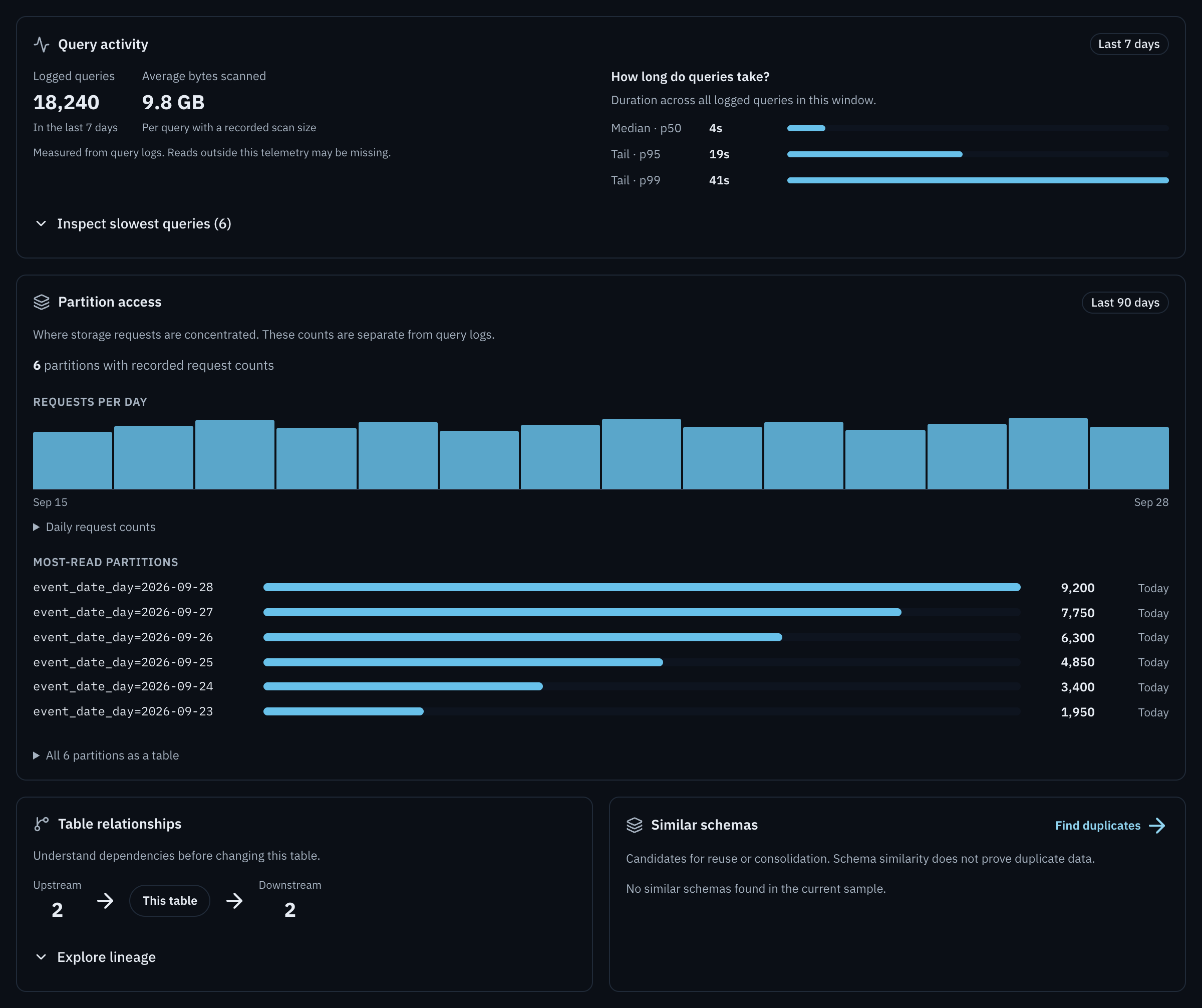

Usage#

How the table is read, from the query log and storage request logs.

cryo.local/tables/analytics.events?tab=usage

Demo data

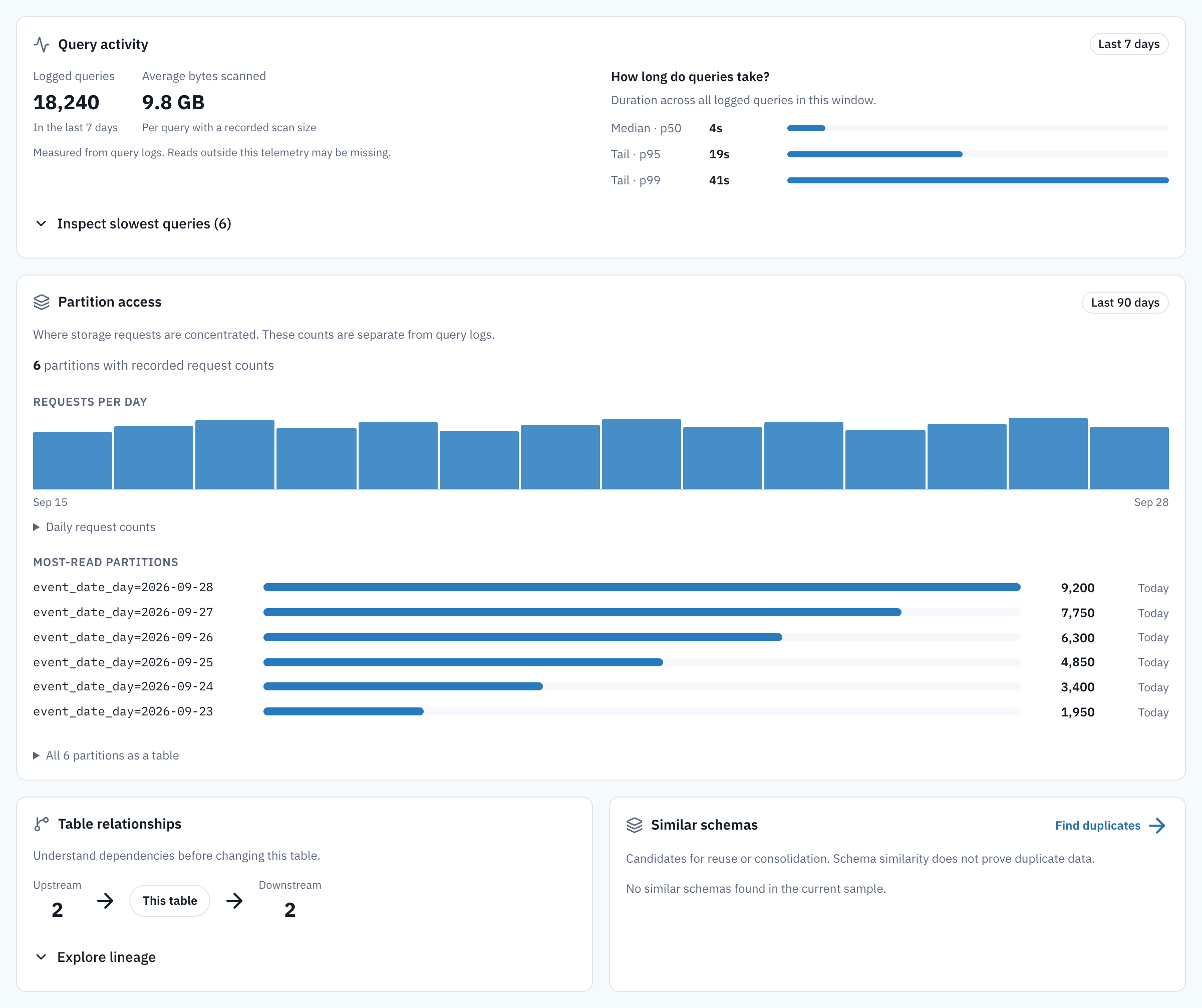

Query activity#

Logged queries and average bytes scanned for the window shown, with median, p95 and p99 latency. Inspect slowest queries lists up to the 100 slowest with their SQL, user, engine and duration. Reads that bypass the query log aren't counted.

Partition access#

Storage requests per day and the most-read partitions, from recorded request counts. This is where hot and cold partitions show up.

Table relationships#

Upstream and downstream tables from recorded lineage. Check them before changing how this table is written. Explore lineage expands the graph.

Similar schemas#

Tables whose schemas overlap this one: candidates for reuse or consolidation, with suggested union SQL. Overlapping schemas don't prove the data is duplicated.

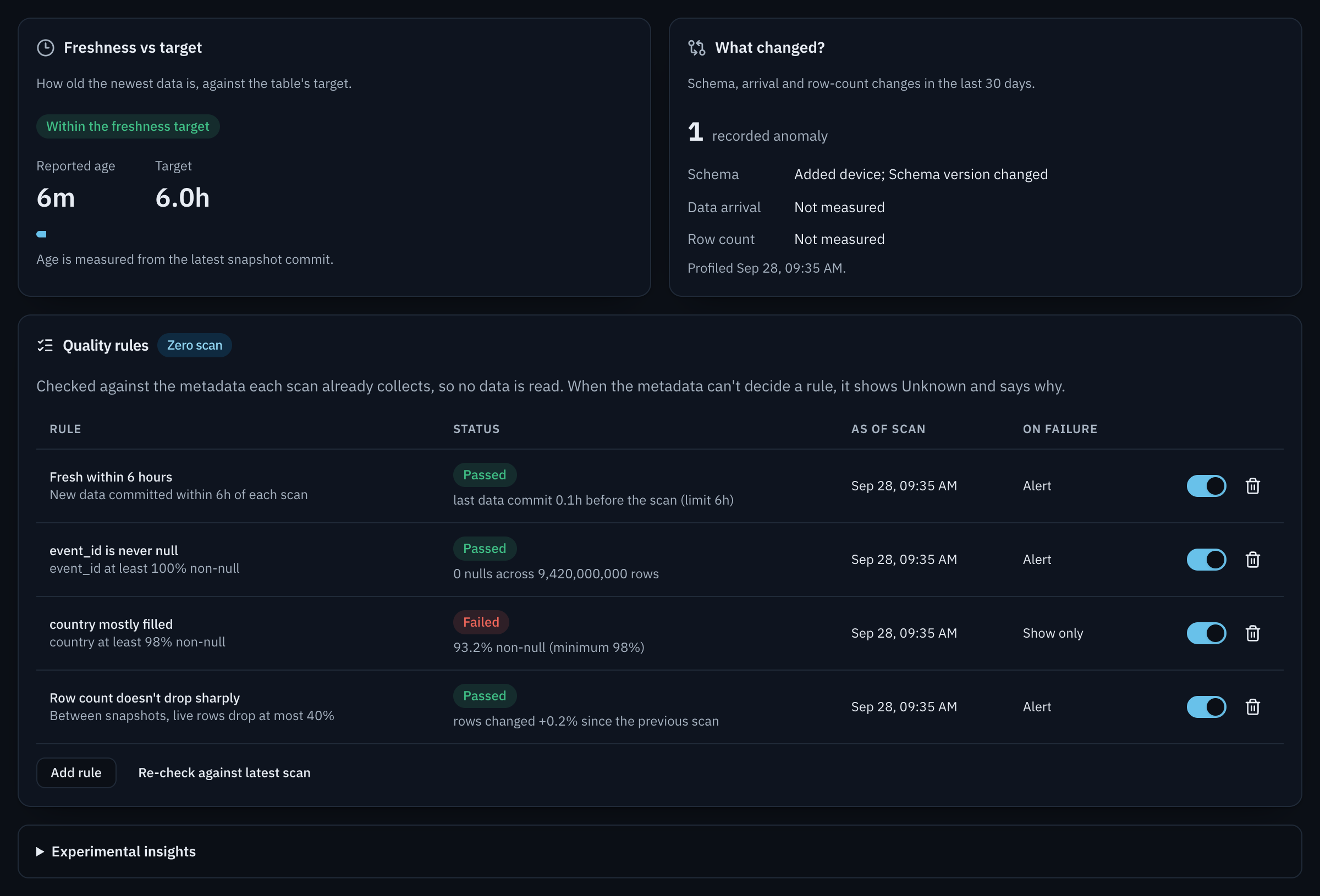

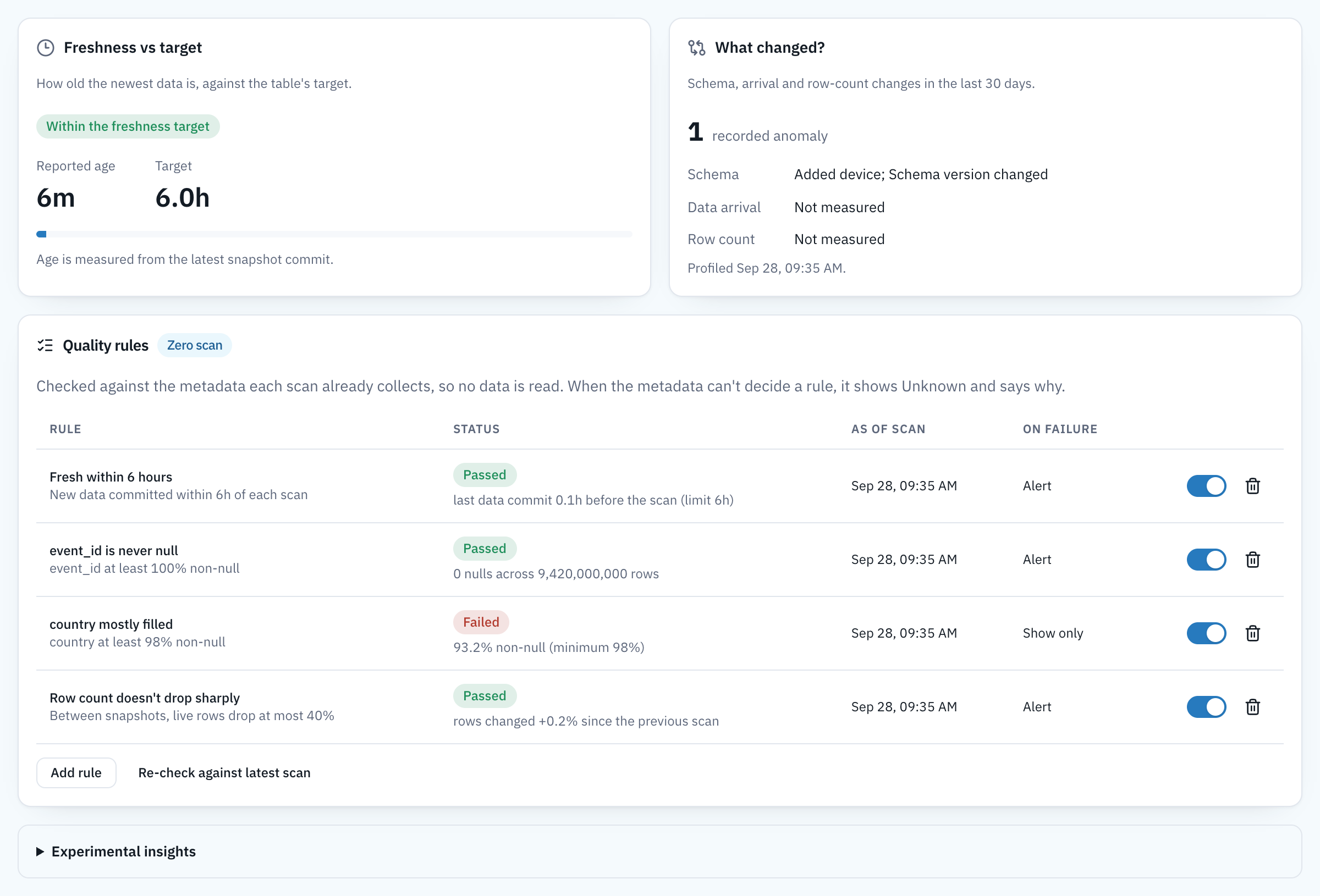

Quality#

Whether the data is fresh and complete, checked against metadata the scanner already collects.

cryo.local/tables/analytics.events?tab=quality

Demo data

Freshness vs target#

The age of the latest data against the table's freshness target, as a bar. Age uses the latest snapshot commit, or the latest scan when the commit time wasn't recorded.

What changed?#

Schema and arrival anomalies over the last 30 days: added or dropped columns, schema version changes, data arrival and row count. No recorded anomaly is not a guarantee that the data is correct.

Quality rules#

Rules on freshness, completeness, value ranges, size and size change. They are zero scan: each is decided from the metadata every scan already collects, so no data is read. A rule the metadata can't decide shows Unknown and says why. On failure, a rule either raises an alert or is only shown here. Add rule creates one, and Re-check against latest scan evaluates them again.

The layout checks that used to sit here moved to the Overview tab, next to the deductions they explain.

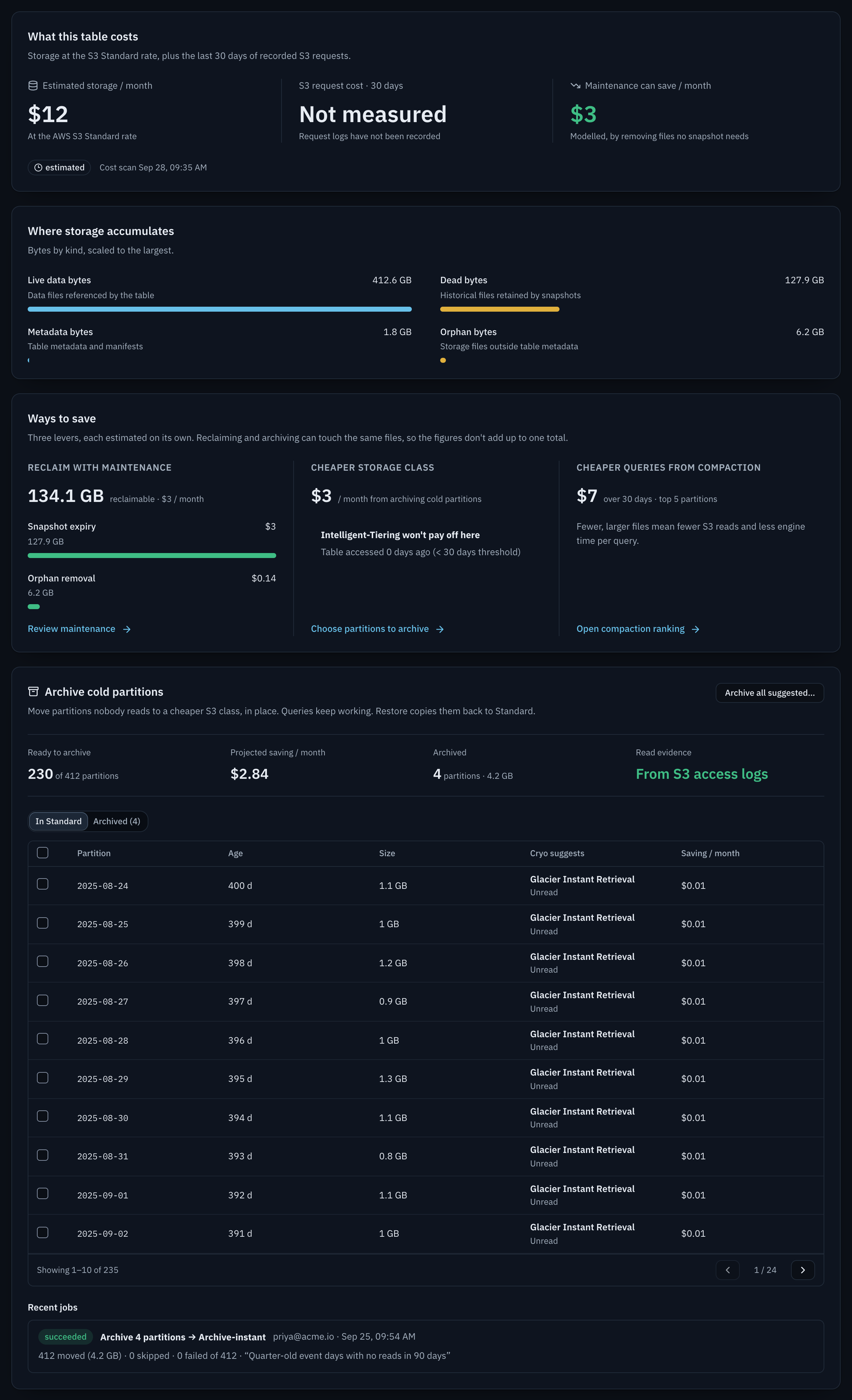

Cost & Savings#

What the table costs to keep in object storage, and what maintenance could give back.

cryo.local/tables/analytics.events?tab=cost

Demo data

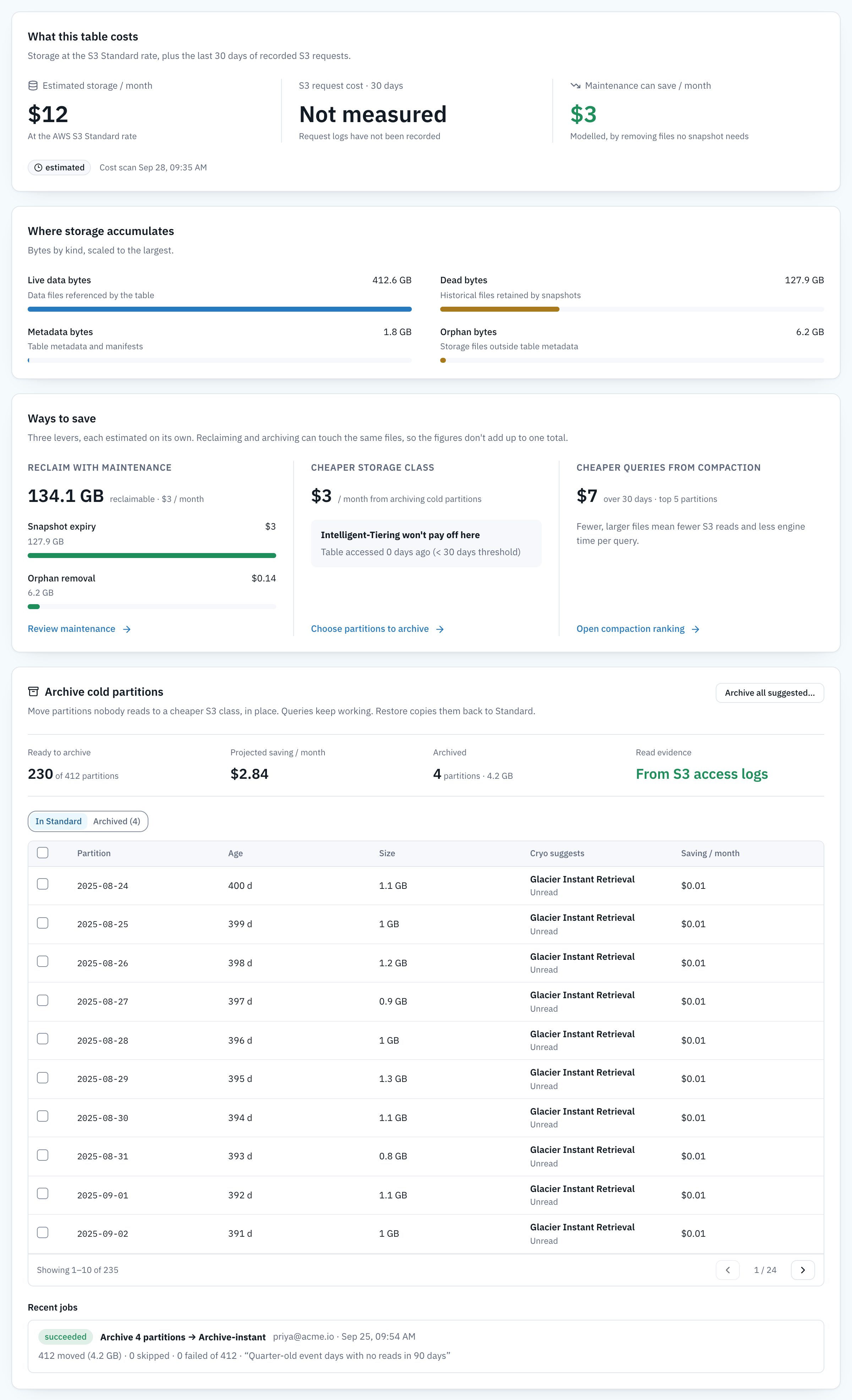

What this table costs#

Estimated storage per month at the AWS S3 Standard rate, the S3 request cost when recorded activity exists, and what maintenance can save per month. Request counts appear only when they were measured. For a table that isn't on S3, dollar figures aren't shown, because the rate wouldn't apply.

Where storage accumulates#

Live data, dead bytes still held by snapshots, metadata, and orphan files outside the table's metadata. The bars are byte counts, not shares of a total.

Ways to save#

Three levers, each with its number and where to act. Reclaim with maintenance: bytes that expiry and orphan cleanup would free, linking to Maintenance. Cheaper storage class: the projected monthly saving from archiving cold partitions, and whether S3 Intelligent-Tiering would pay off for the whole table. Cheaper queries from compaction: the modelled 30-day saving for the ranked compaction candidates. They measure different things, so they're shown next to each other and not totalled.

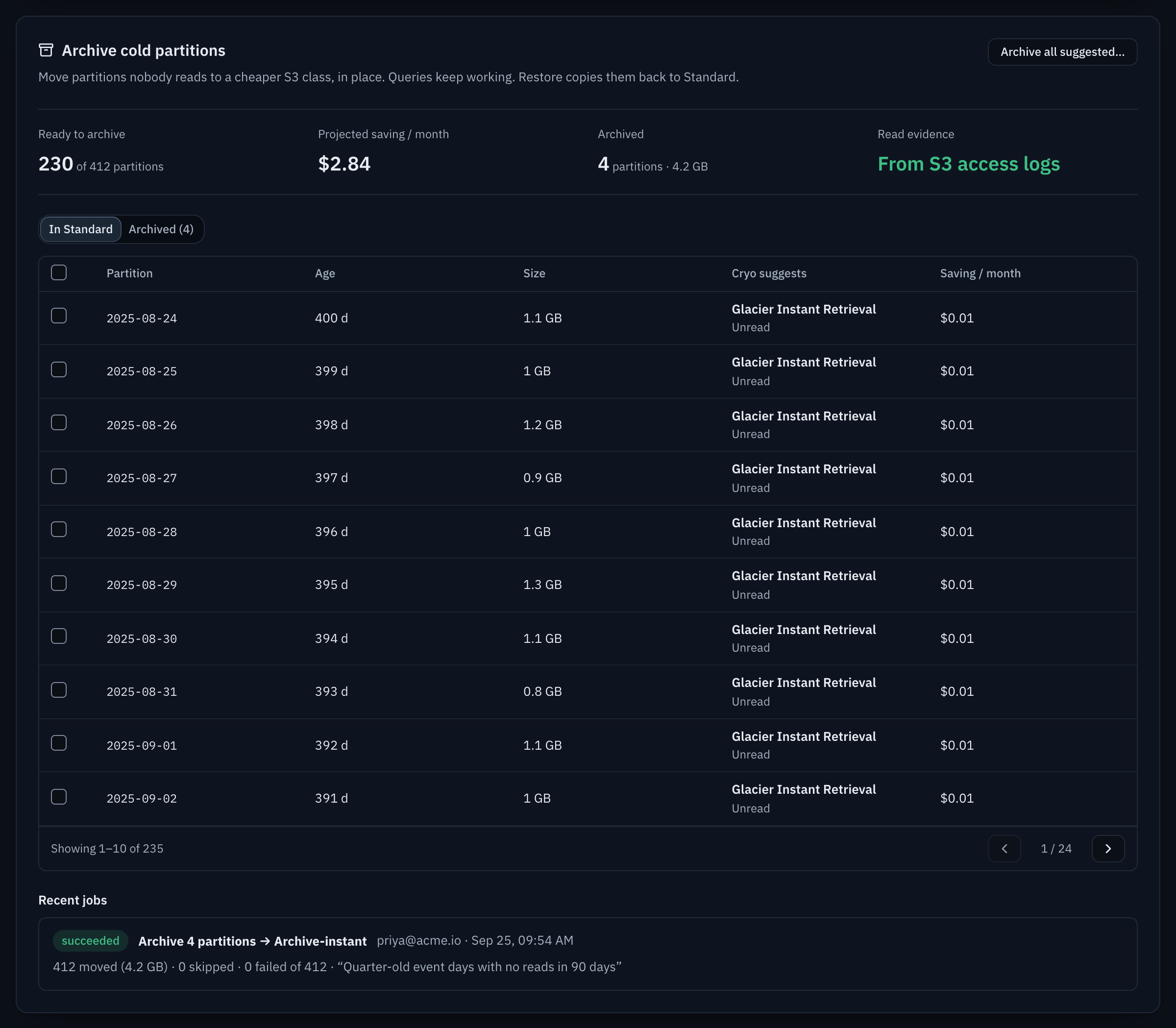

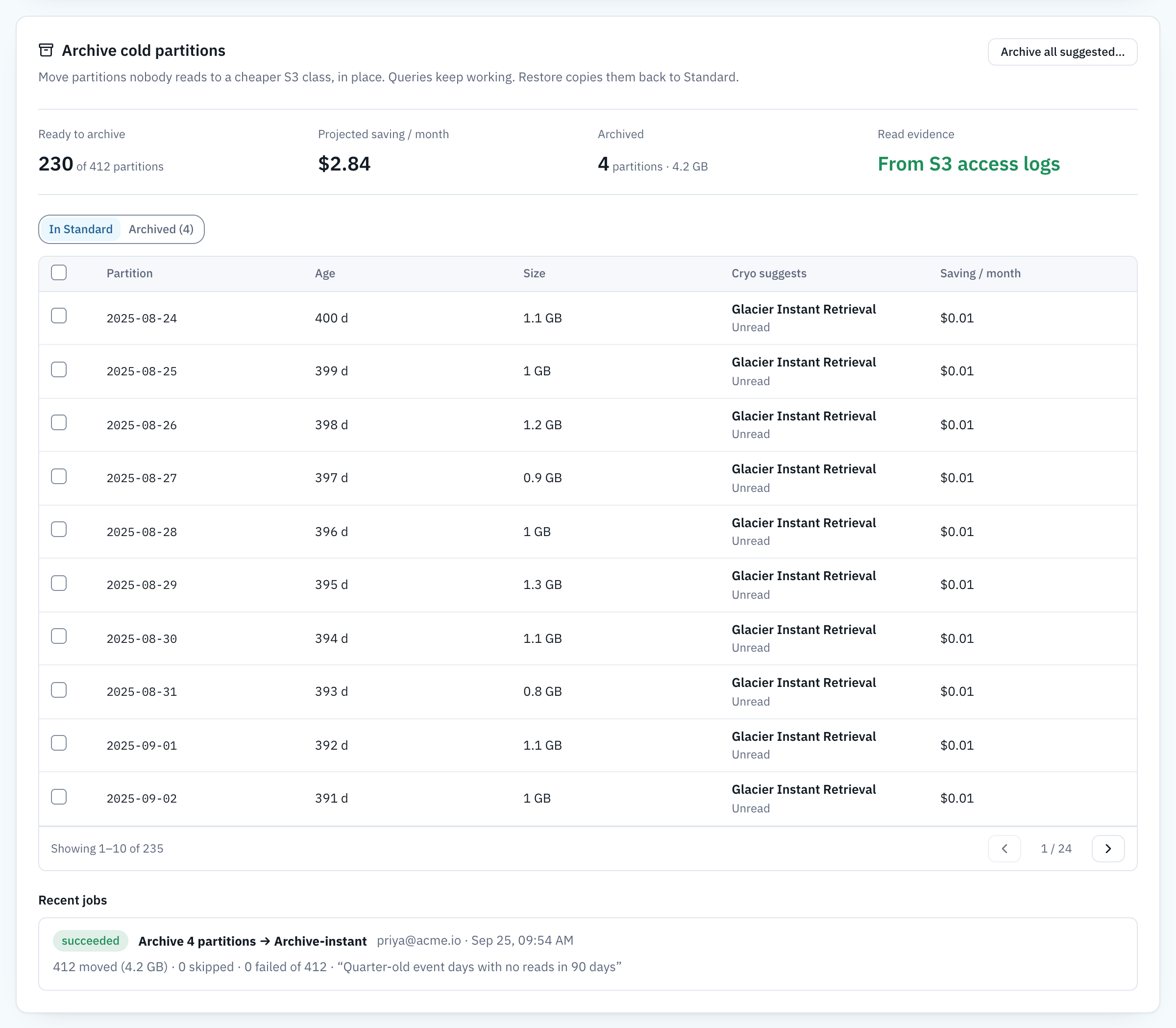

Archive cold partitions#

Moves the data files of partitions nobody reads to a cheaper S3 storage class, in place. Paths and Iceberg metadata don't change, so every query keeps working. Only instant-retrieval classes are offered: Intelligent-Tiering, Standard-IA and Glacier Instant Retrieval. Restoring copies the files back to Standard.

cryo.local/tables/analytics.events?tab=cost

Demo data

1. Select

   Tick partitions, or use Archive all suggested…. On the Archived view, select partitions to restore.

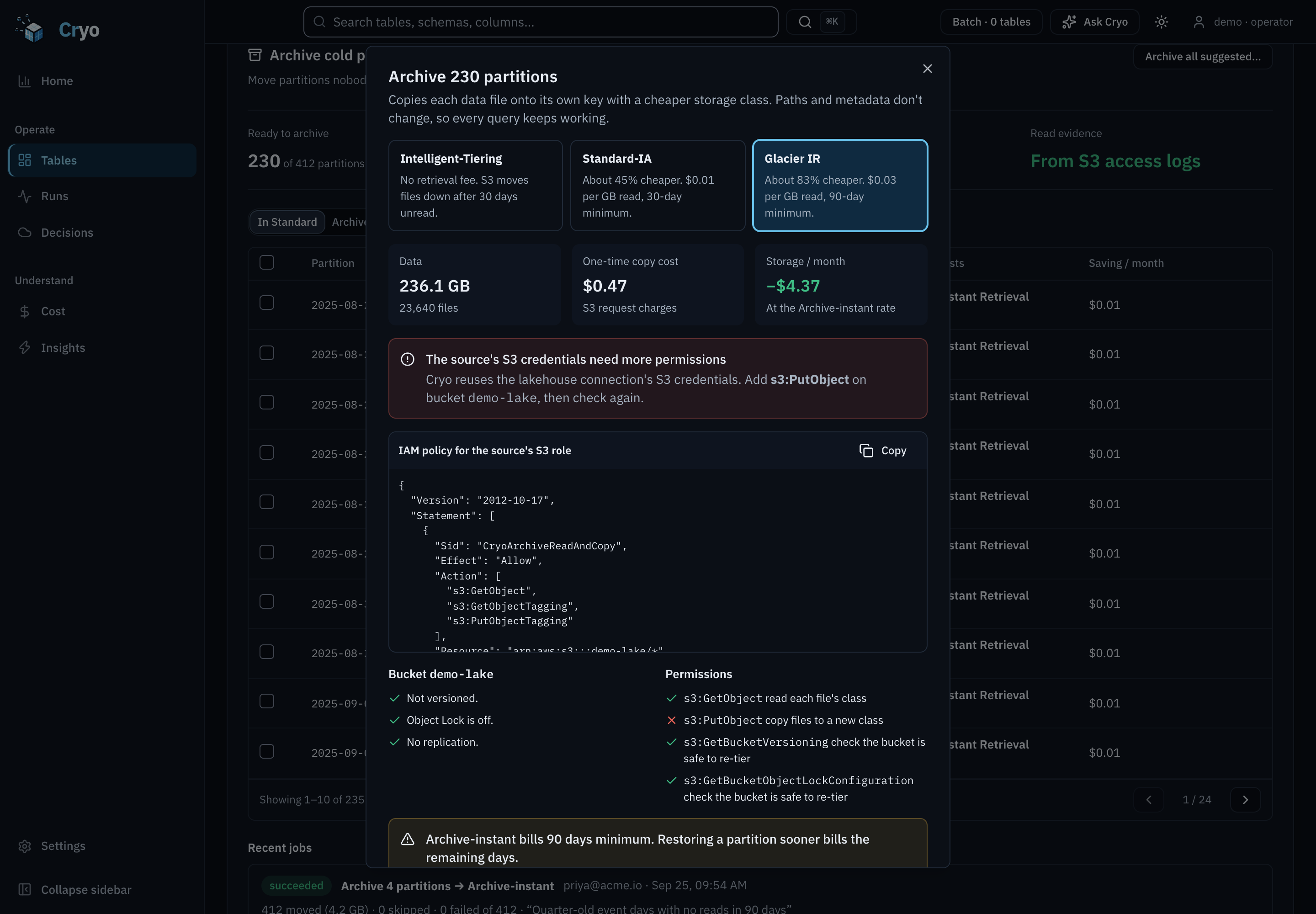

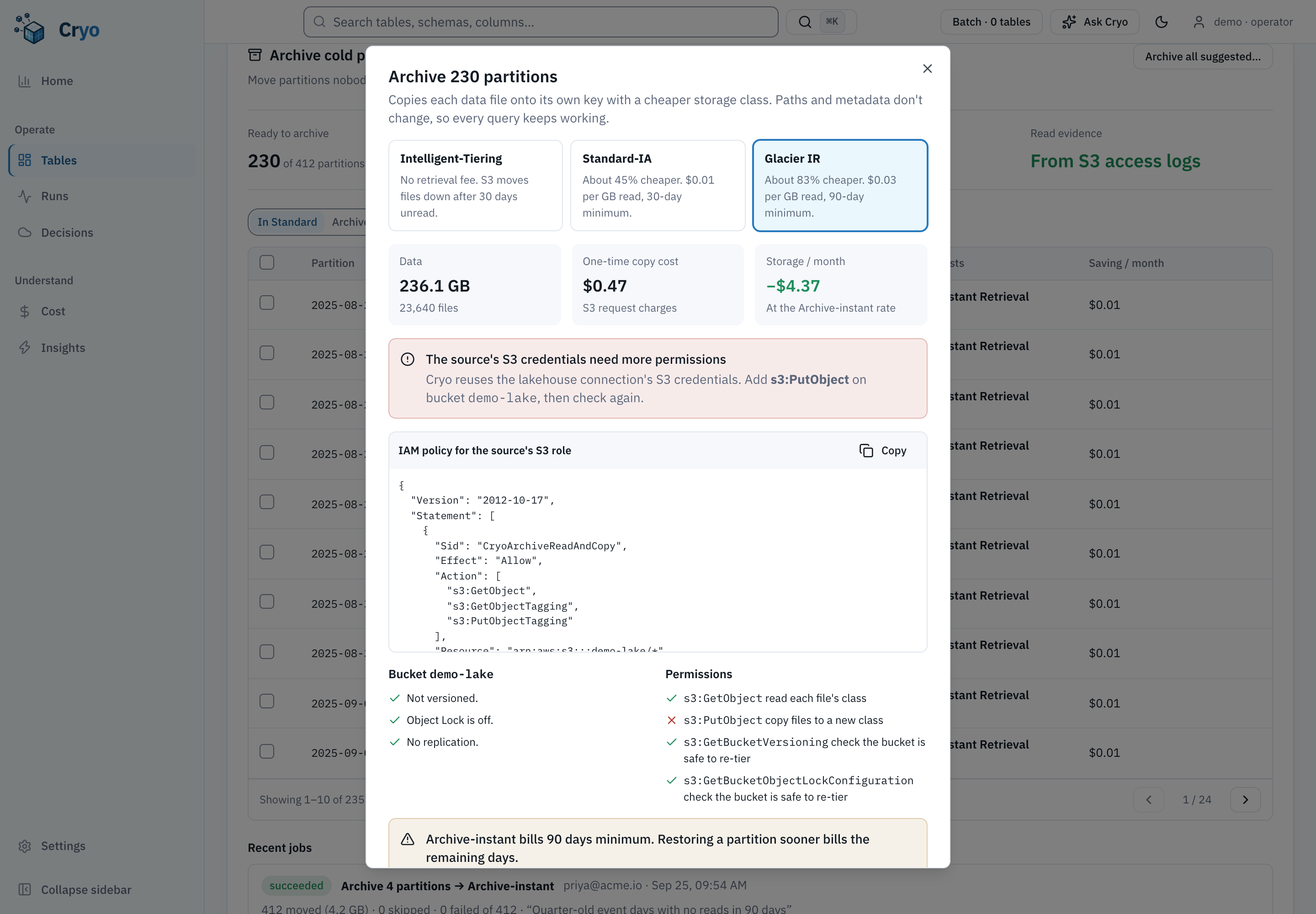

2. Preflight

   The dialog checks before anything moves: the data and file count, the one-time copy cost, the change in monthly storage, retrieval and early-delete charges, the bucket's versioning, Object Lock and replication, and whether the source's S3 credentials can do the copy. Without read evidence, Glacier IR and Standard-IA need an explicit confirmation.

3. Apply

   Give a reason and start the job. It runs in the background under the table's maintenance lock, and the job list shows progress, files moved, skipped and failed. Every job is audited.

cryo.local/tables/analytics.events?tab=cost

Demo data
